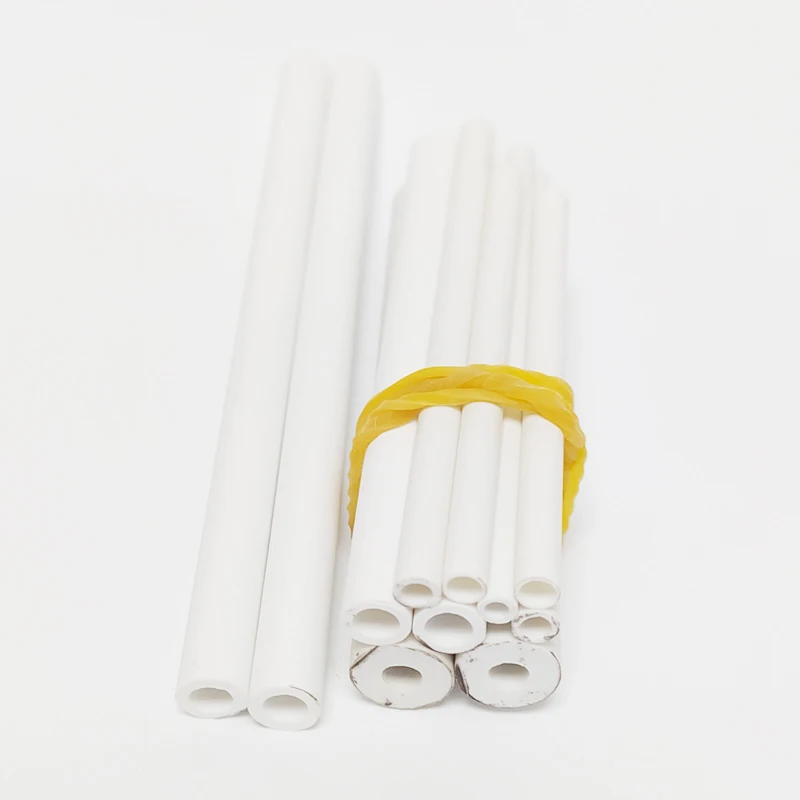

75% Alumina Al2o3 Pythagoras Ceramic Tubes for Isolators
Product Description
We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including
1.alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60 Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2),
2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).

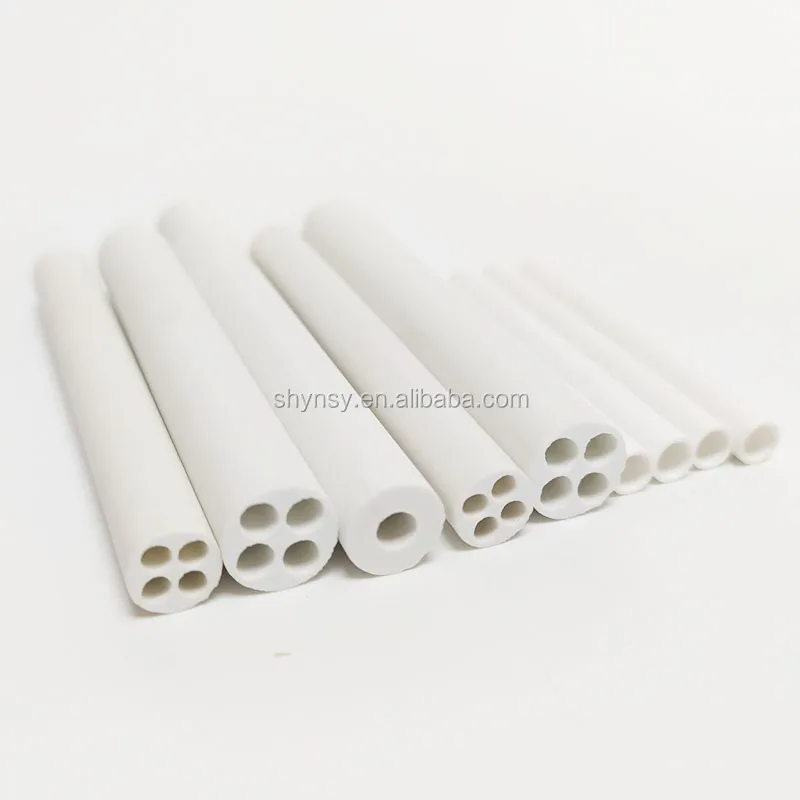

These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor
1.alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60 Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2),
2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).
These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor

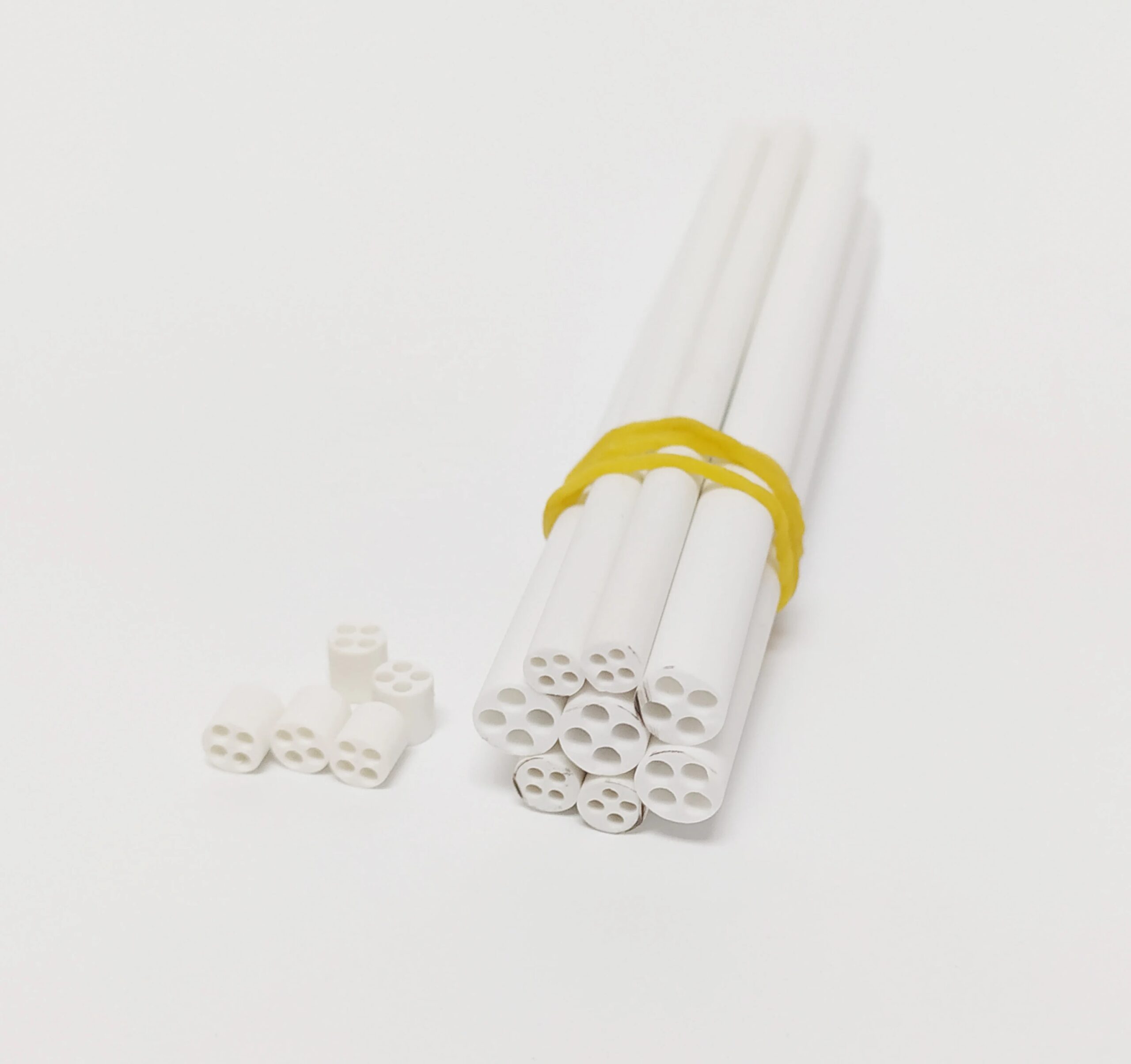

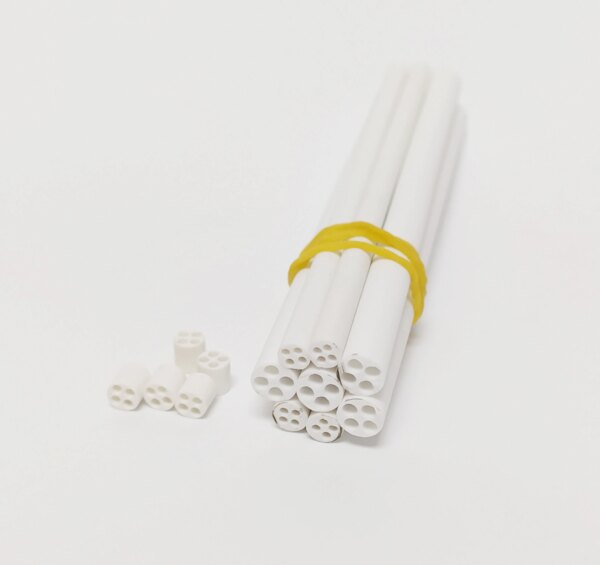

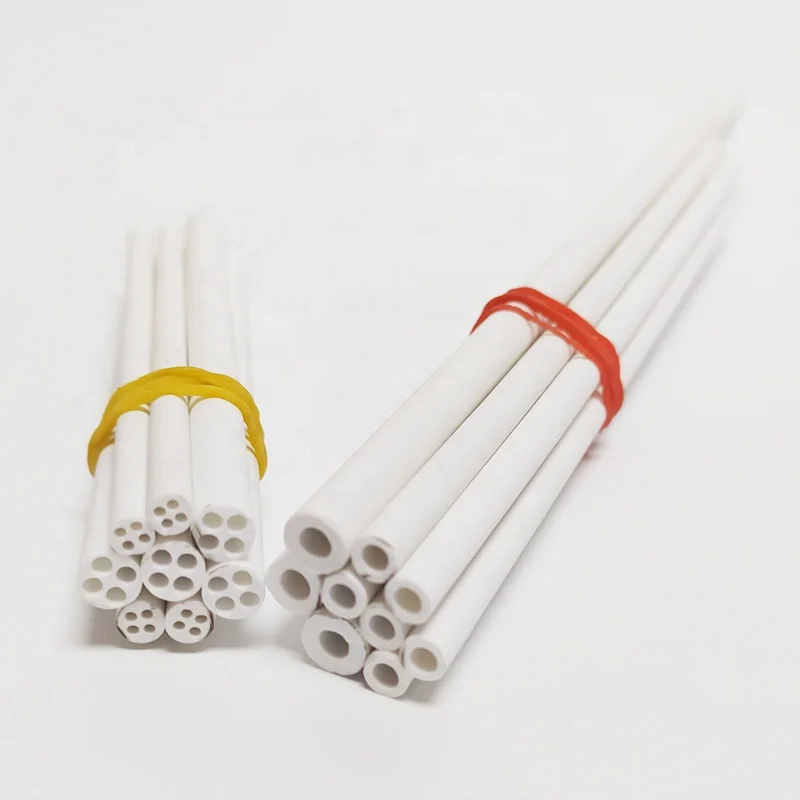

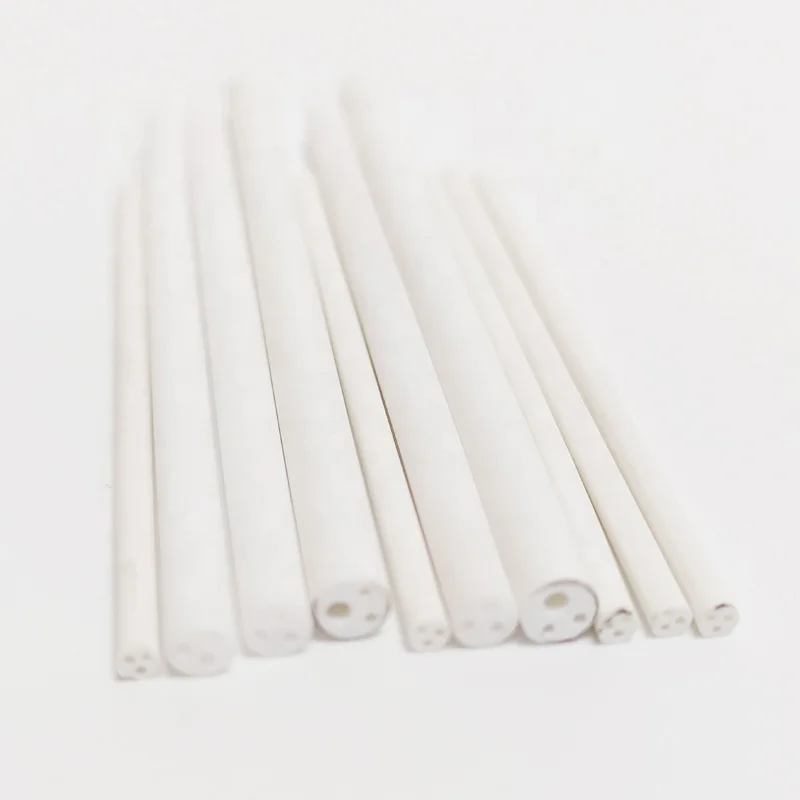

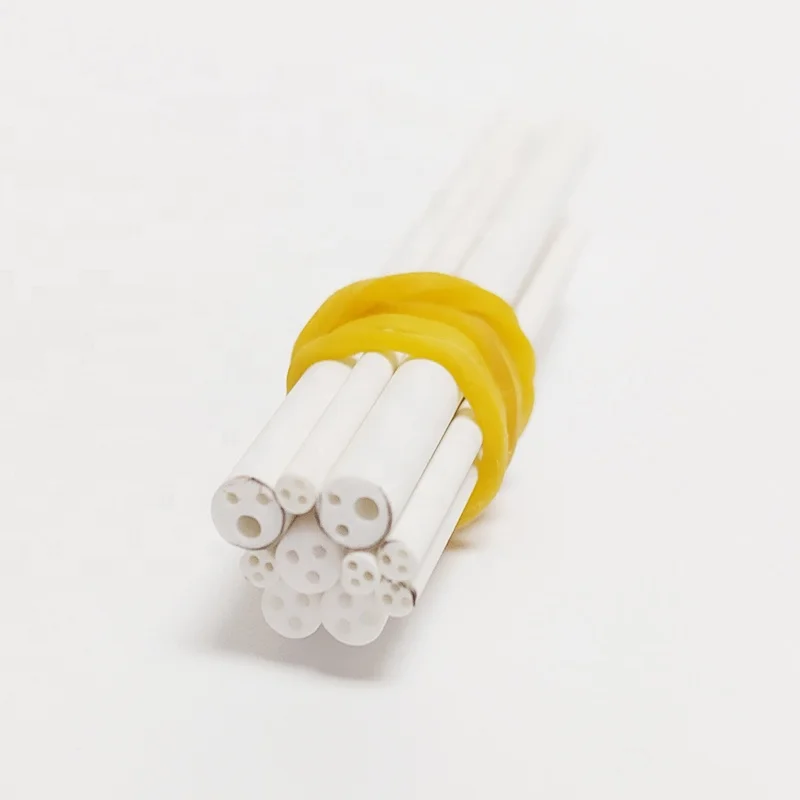

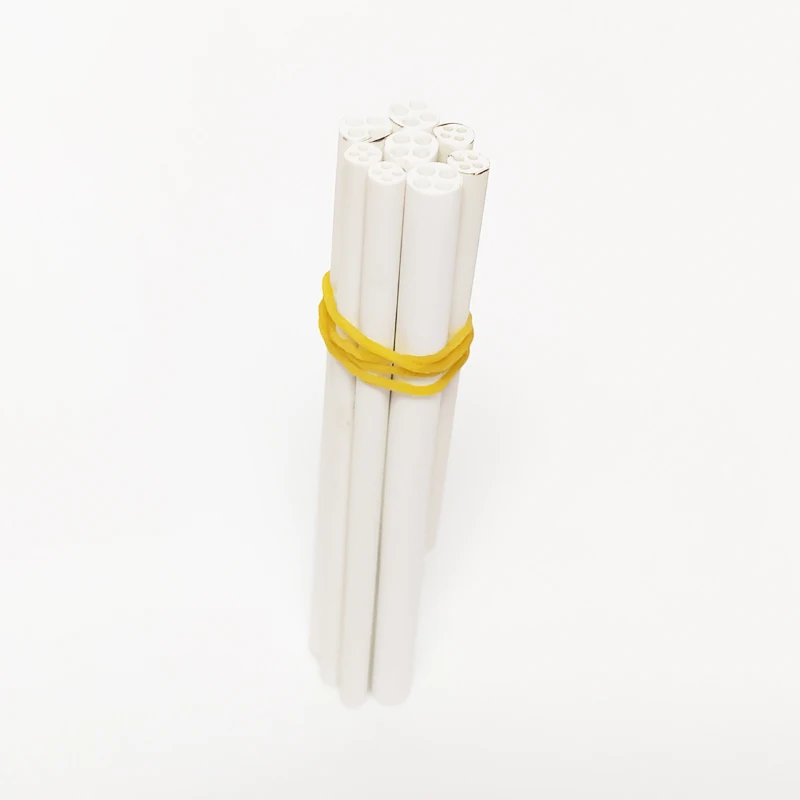

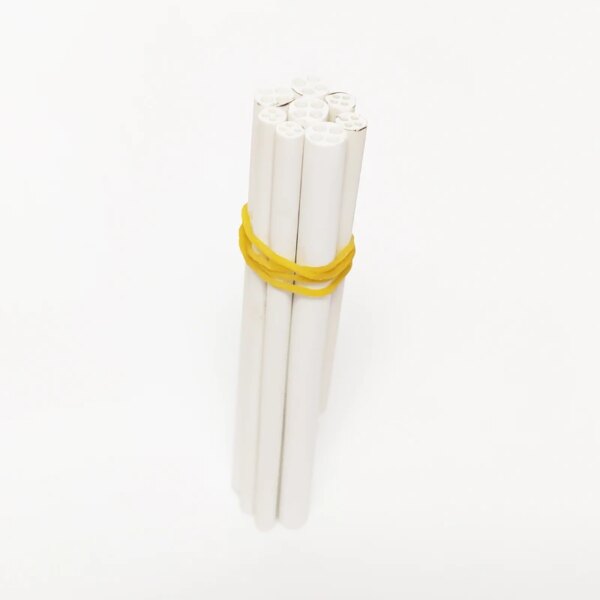

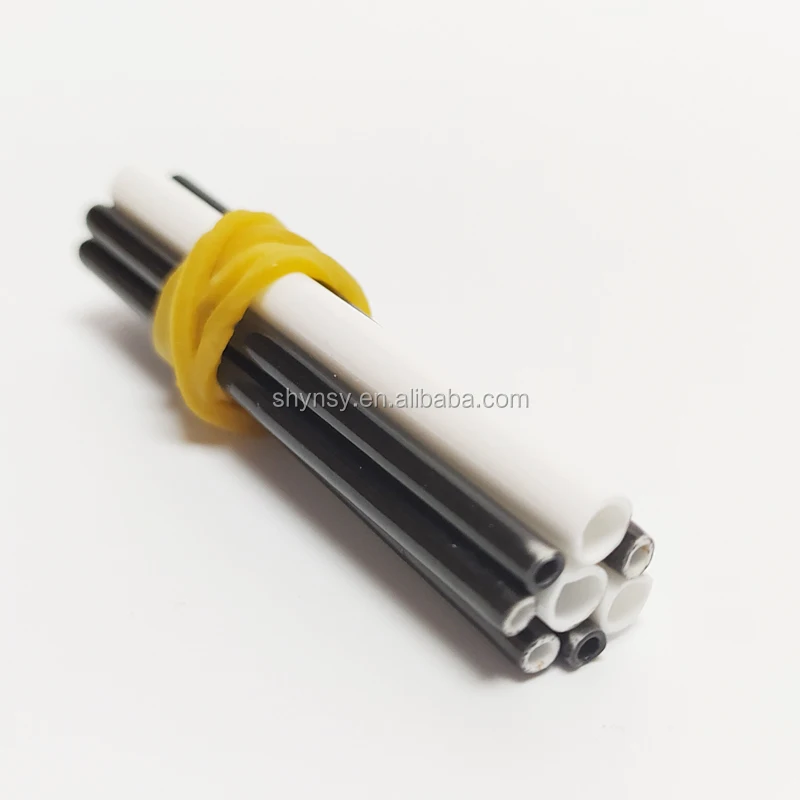

Dimulit C610 insulated tube and rods

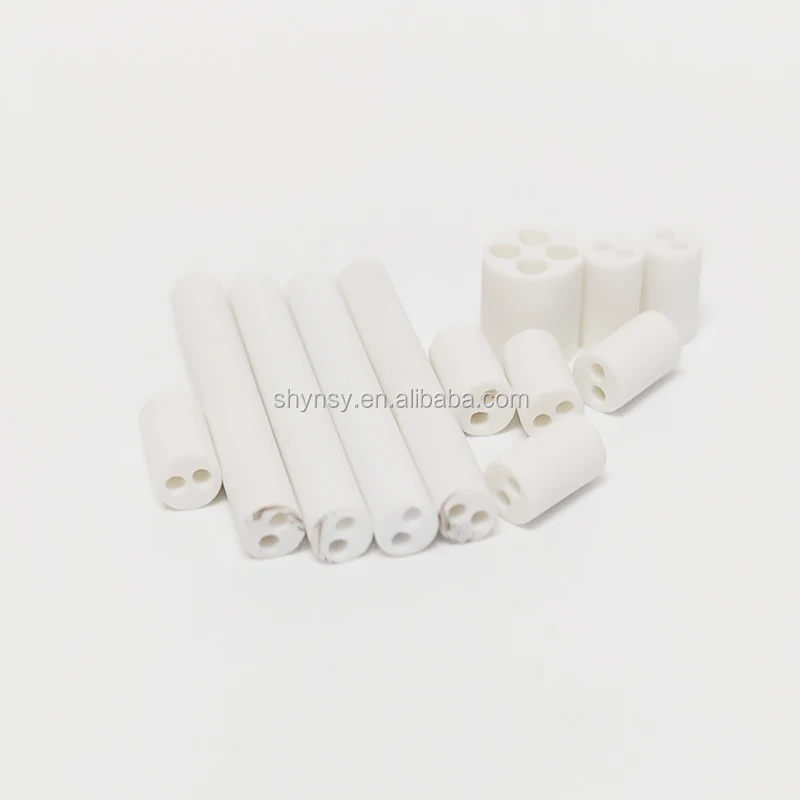

OD 1.2-15MM,Length 5,10,25, 50mm,with one hole,two holes,four holes

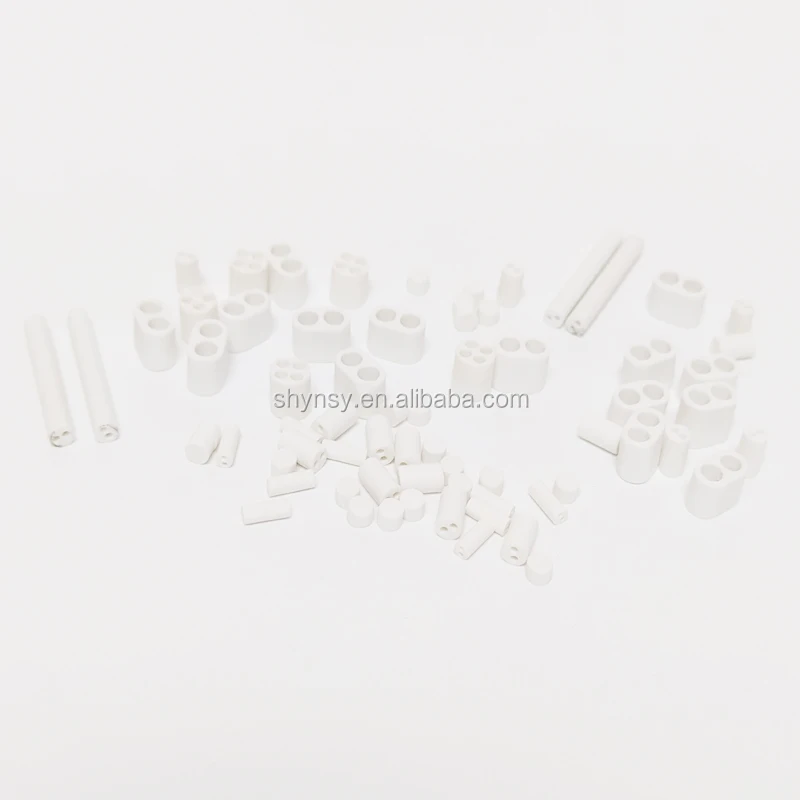

Thermocouple Beads are made of pure Alumina/ Mullite compositions and are used to insulate thermocouple conductor
wires inserted inside thermocouple tubes.
wires inserted inside thermocouple tubes.
Features:
* Excellent electric insulation
* Resistant to corrosive & oxidizing atmosphere
* Great strength and rigidity
* Low thermal expansion
* Non toxic
* Resistant to wear and tear
* Great compressive strength
* Stability under highly demanding conditions
* Excellent electric insulation
* Resistant to corrosive & oxidizing atmosphere
* Great strength and rigidity
* Low thermal expansion
* Non toxic
* Resistant to wear and tear
* Great compressive strength
* Stability under highly demanding conditions
Chemical composition | ||
Sio2 | 13.59% | |
Al2o3 | 79.62% | |
Fe2o3 | 0.15% | |
Tio2 | 0.12% | |
Cao | 1.62% | |
Mgo | 0.81% | |
K2O | 0.15% | |
Na2O | 0.11% | |
Physical property | ||
Density | 3.3 g/cm3 | |
Working Temperature | 1300C | |
VR
Material | alumina,zirconia,mgo,steatite,mullite ect |
Size | customized or standard |
Application | sensors, electrical insulators or spacers in heat-treating furnaces, |
Color | white,yellow,pink |
Package | foam,carboard,plywood box |
Shipment | by courier,by flight,by sea |
