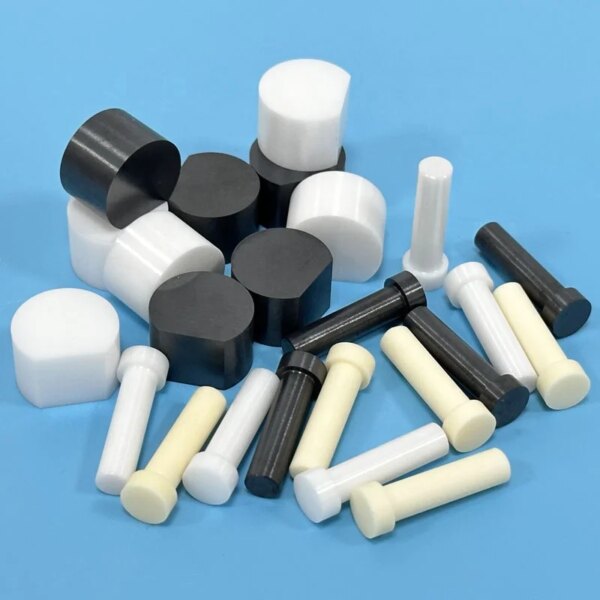

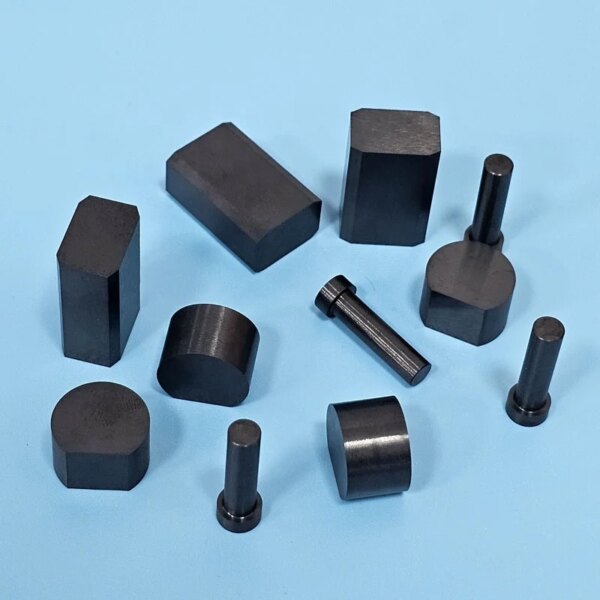

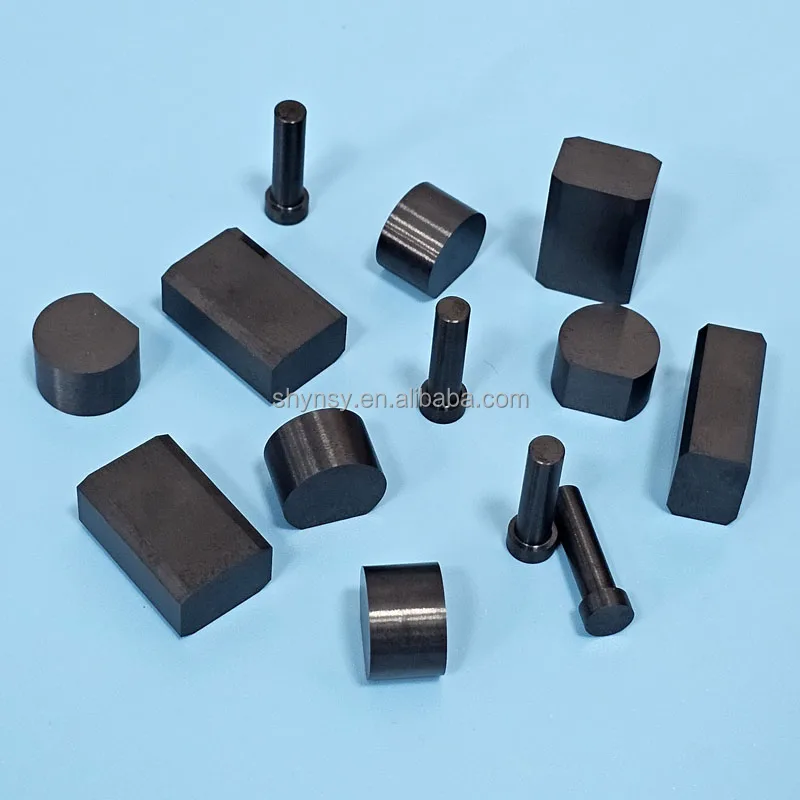

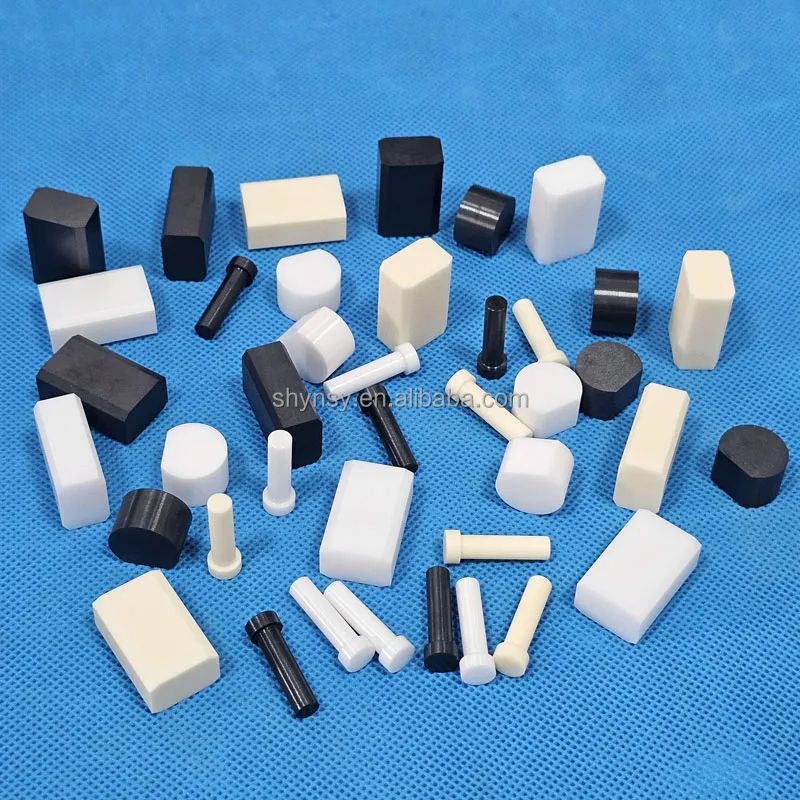

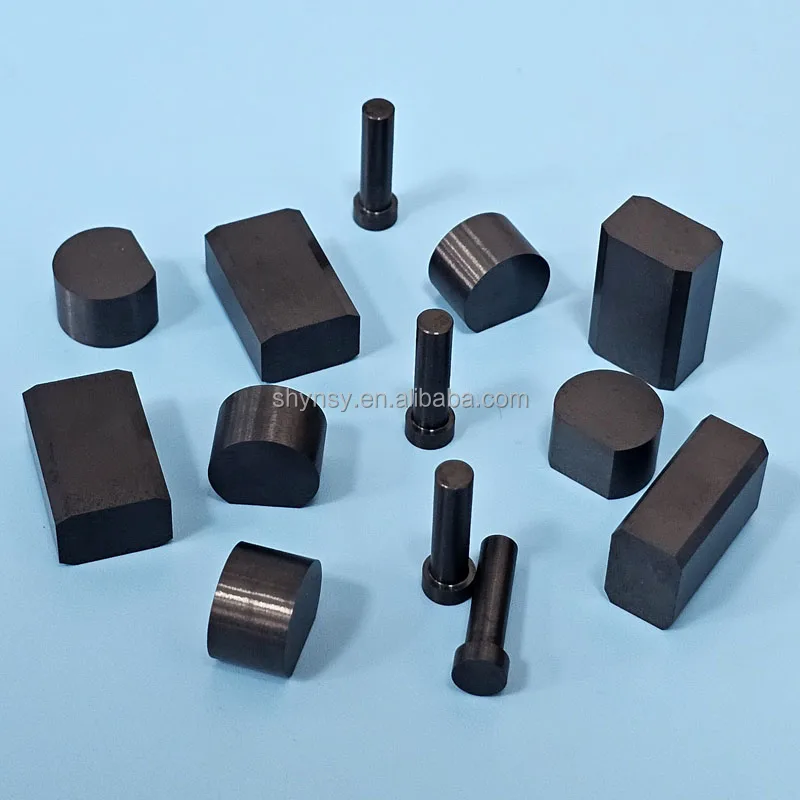

Customized machining silicon nitride si3n4 ceramic blocks for machine
Product Description
Si3n4 ceramics
abrasion resistance and chemical resistance, high thermal conductivity and low thermal expansion coefficient,
which make it have good thermal shock resistance and stable performance. Due to these good
comprehensive properties and relatively low density, silicon nitride materials can meet the highest quality
requirements in applications. Typical applications include:
High-grade refractory crucible
Bearings and wire drawing dies
Welding nozzle and positioning pin
Cutting tools
Thermocouple protective sleeve
High-grade refractory crucible
Bearings and wire drawing dies
Welding nozzle and positioning pin
Cutting tools
Thermocouple protective sleeve
Item | Unit | Value |
Density | g/cm3 | 3.2 |
Bending strength | MPa | 750 |
Compressive strength | MPa | 3,800 |
Elastic Modulus | GPa | 290 |
Fracture toughness | MPam1/2 | 6.7 |
Weber coefficient | M | 15 |
Vickers hardness | HV0.5 | 1,700 |
Linear expansion coefficient | 10-6K-1 | 2.8 |
Thermal conductivity | W/mK | 20 |
Resistance to thermal shock (water cooling) | TC | 750 |
Maximum use temperature | C | 1,300 |
Volume resistance, 20 ℃ | Ωcm | >1014 |
Dielectric strength | V/m | 10×106 |
corrosion. For example, boiled hydrochloric acid, concentrated nitric acid, aqua regia, sulfuric acid, sulfuric
acid and aluminum hydroxide solution with a concentration below 25%. The silicon nitride cannot be corroded,
the dense silicon nitride has good oxidation resistance, and can still be used stably in an oxidizing
atmosphere below 1400 ° C. The silicon nitride material also has good stability to metal melts and is not
wetted, such as molten metals zinc, gold, silver, aluminum, cadmium, indium, lead, bismuth,
gallium, germanium, etc. and their alloys such as yellow Copper, hard aluminum, nickel silver, etc. all have
gallium, germanium, etc. and their alloys such as yellow Copper, hard aluminum, nickel silver, etc. all have
good corrosion resistance.
