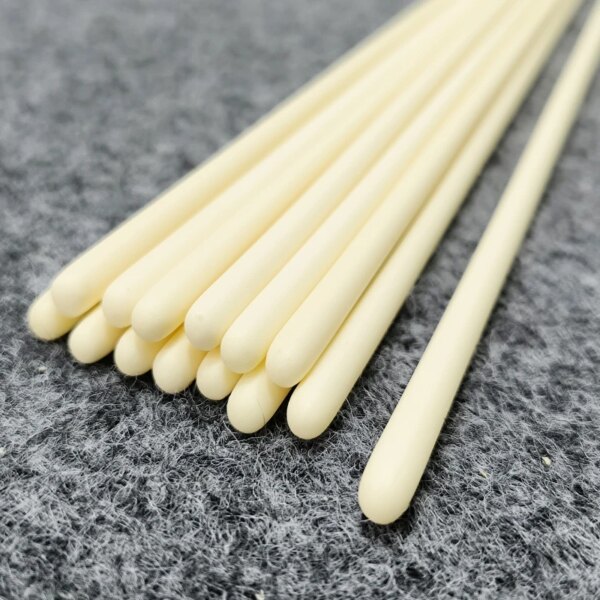

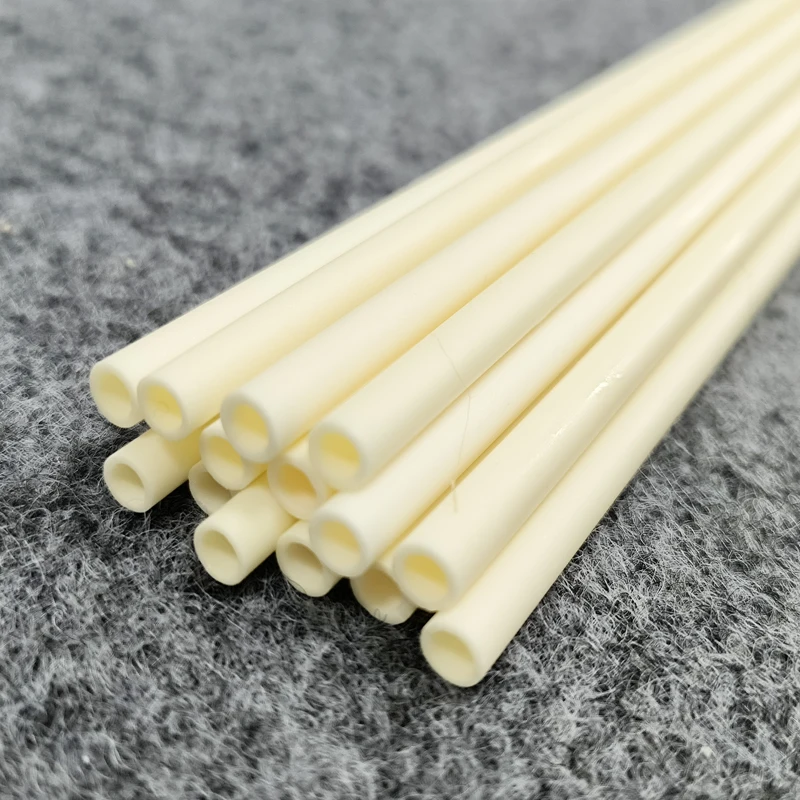

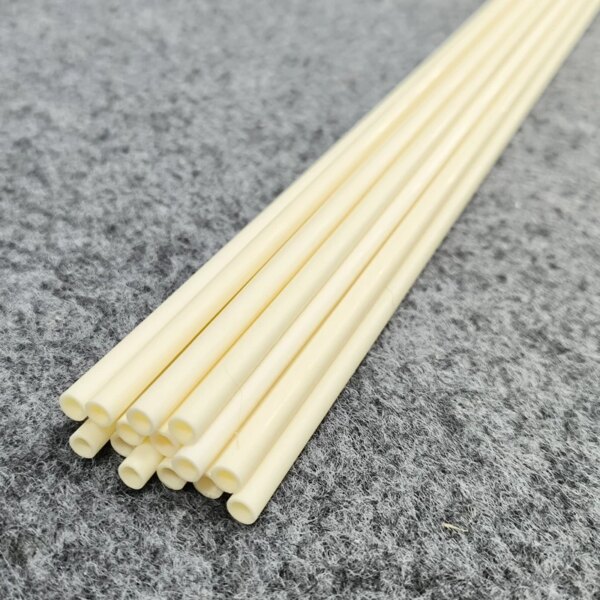

High Pure 95/99% Alumina Ceramic Tube with Closed End COE
Product Description
We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including
1.alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60 Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2),
2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor
2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor
Material data:
Performance | ||||||||||||||||
AL2O3% | 60 | 75 | 80 | 85 | 92 | 95 | 99 | 99.7 | ||||||||
Bulk Density(g/cm3) | 3.0 | 3.1 | 3.3 | 3.4 | 3.6 | 3.7 | 3.81 | 3.91 | ||||||||
Flexural strength(MPa) | 205 | 280 | 215.7 | 230 | 312 | 304 | 340 | 370 | ||||||||
Linear expansion coefficient(×10-6/C)（25-800C） | 7.1 | 7.6 | 7.6 | 7.6 | 7.5 | 7.3 | 7.6 | 7.6 | ||||||||
Thermal conductivity[w/(m.R)] | 16 | 17 | 17 | 17 | 18 | 20 | 34 | 35 | ||||||||
Dielectric strength(KV/mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||||||||
Volume resistivity(Ω.cm)20C | >1014 | >1014 | >1014 | >1014 | >1014 | >1014 | >1014 | >1014 | ||||||||
300C | >1013 | >1013 | >1013 | >1013 | >1013 | >1012 | >1010 | >1010 | ||||||||
Max C | 1350 | 1100 | 1300 | 1350 | 1500 | 1600 | 1700 | 1800 | ||||||||
Moh's hardness | 7.5 | 7.5 | 7.5 | 7.5 | 8.5 | 8.8 | 9 | 9 | ||||||||
Refractoriness | 1800 | 1700 | 1800 | 1850 | 1920 | 2000 | 2030 | 2040 | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Profile
Products Description
Certifications
Way of shipping
Our Advantages
FAQ
Q1: How can know your quality?
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we receive payment.
Q5:Payment terms:
We can negotiate.
