High Quality Yellow Calcia Stabilized Zirconia ( CSZ ) Setter Plates for Sintering PZT
Product Description

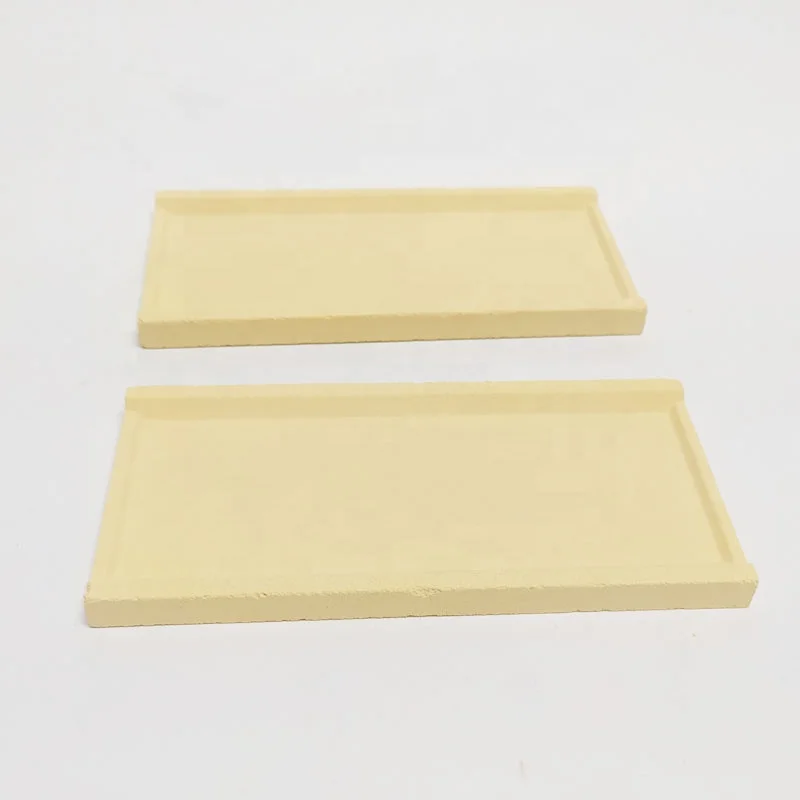

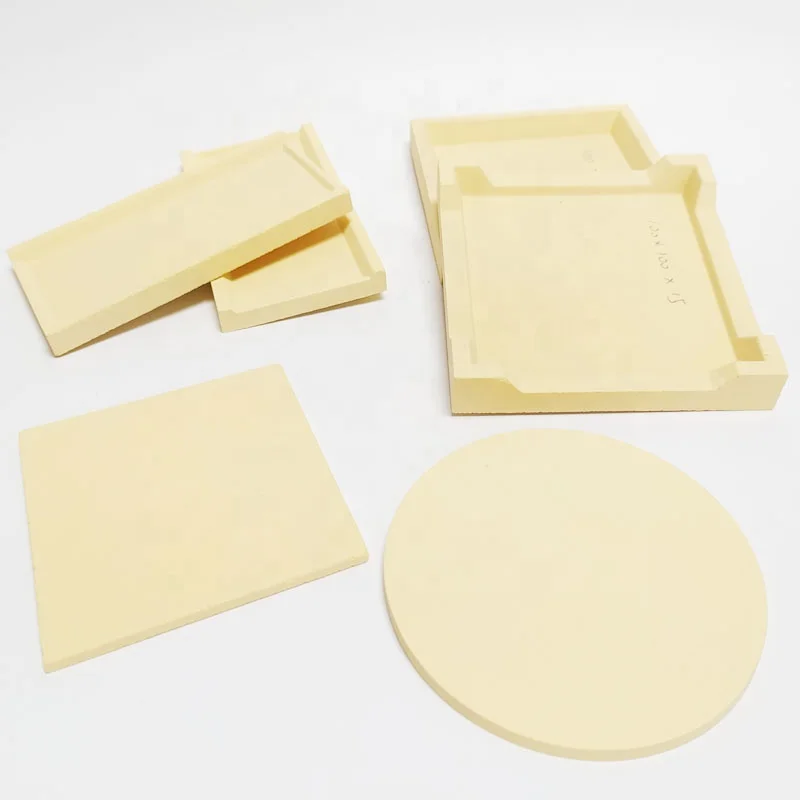

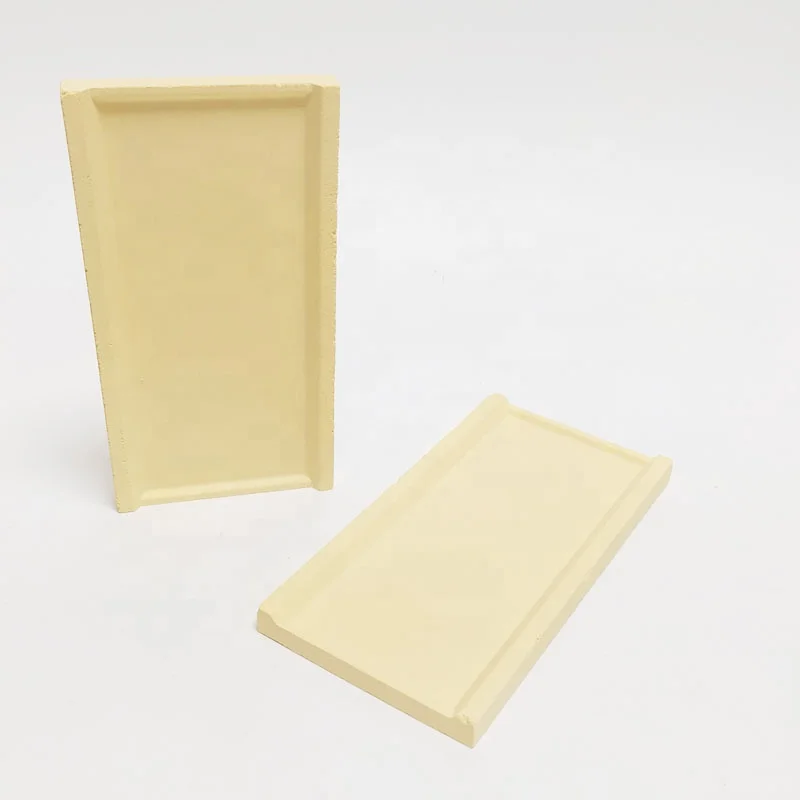

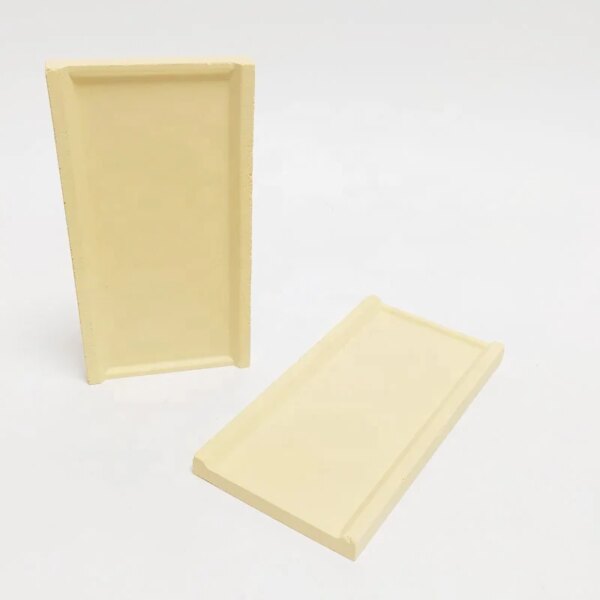

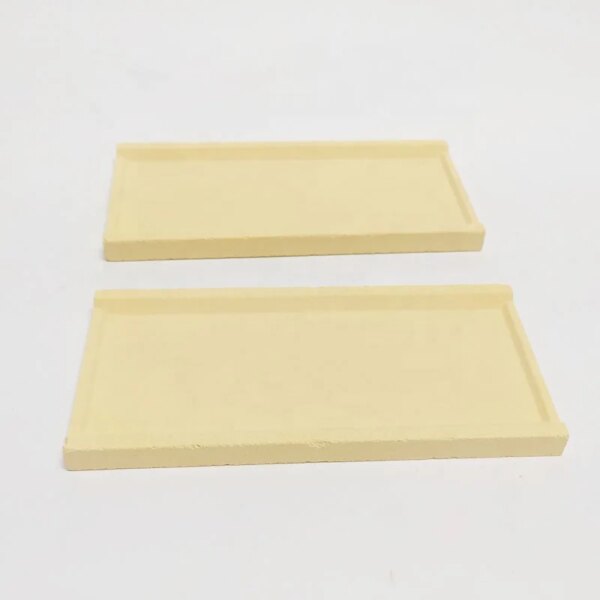

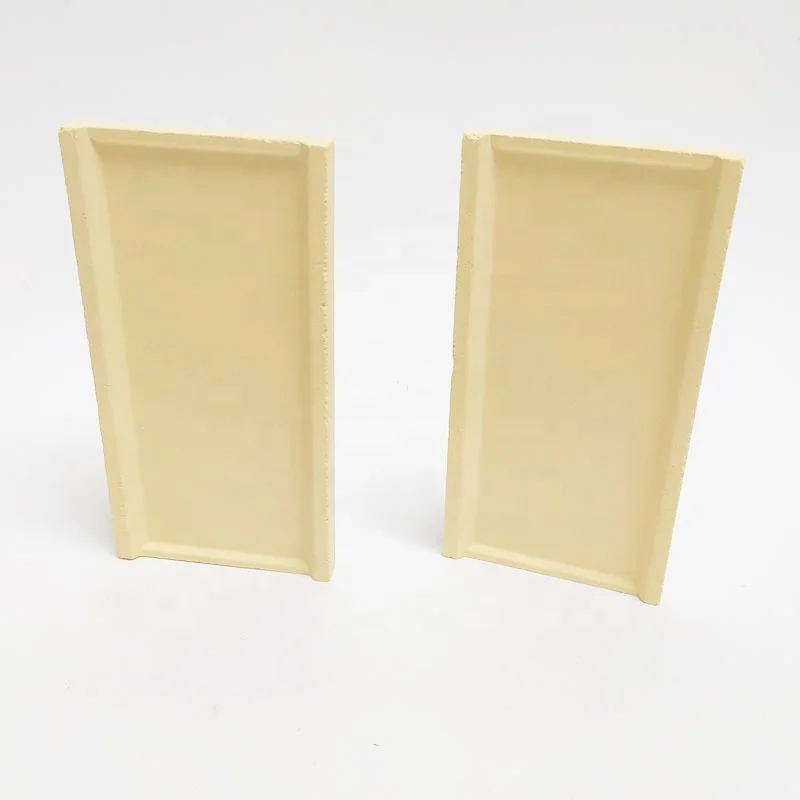

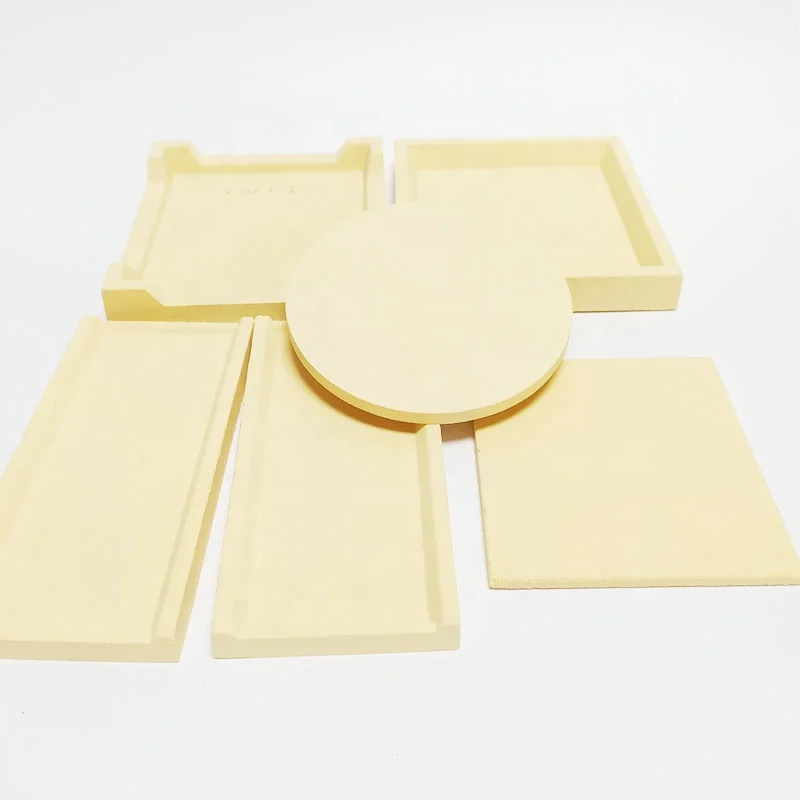

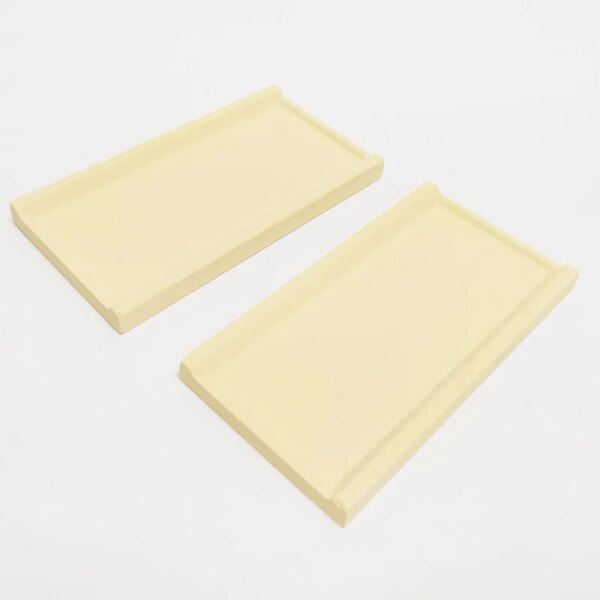

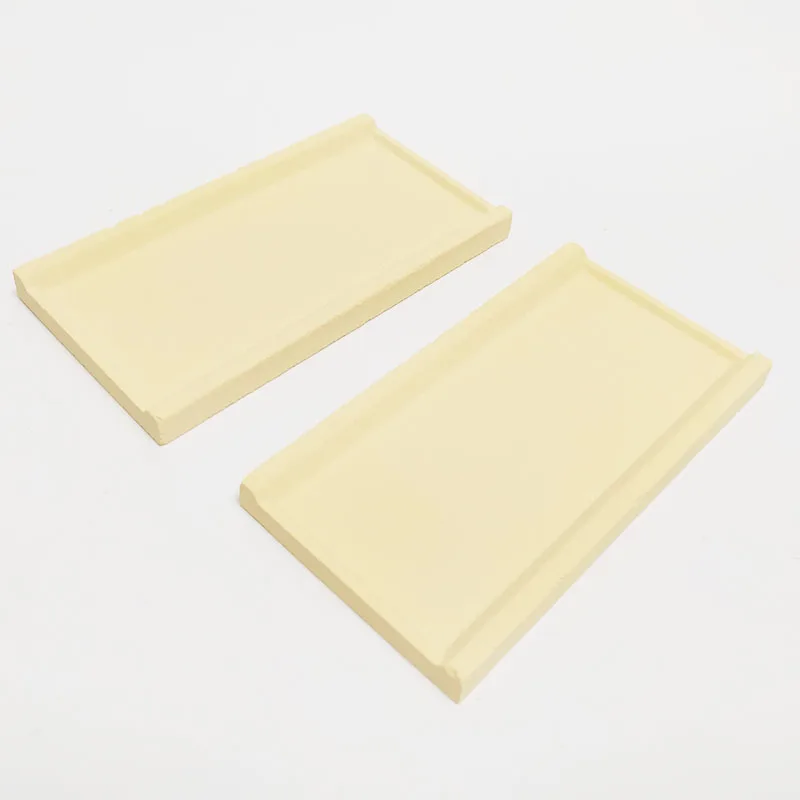

Zirconia setter plates and trays
Purity: 98.5% purity
Product process: machine pressing
Color: yellow
Advantages: good thermal shock resistance, high flatness, no slag drop, temperature resistance 1600C

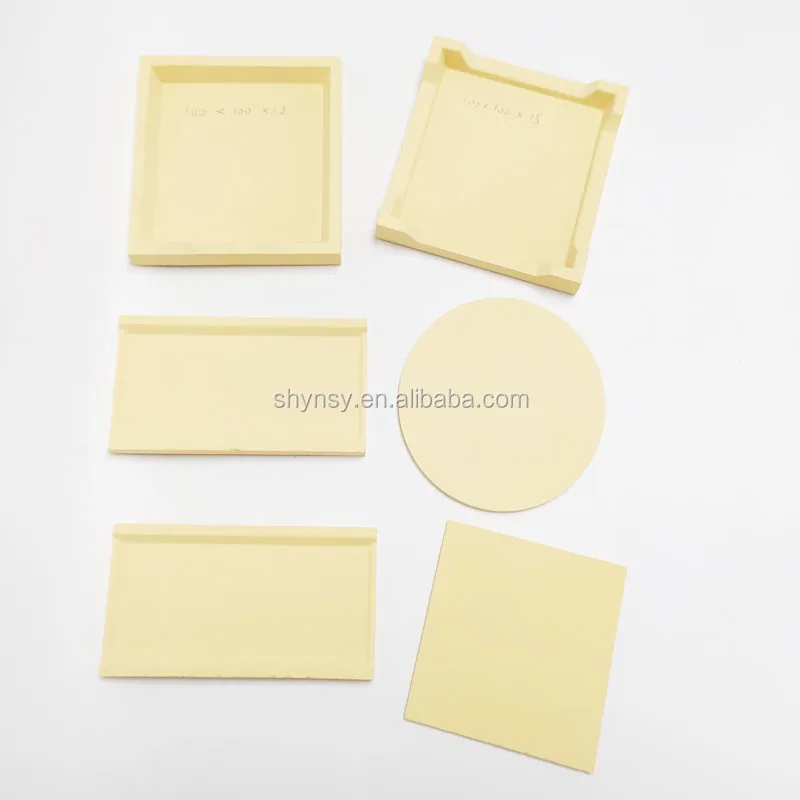

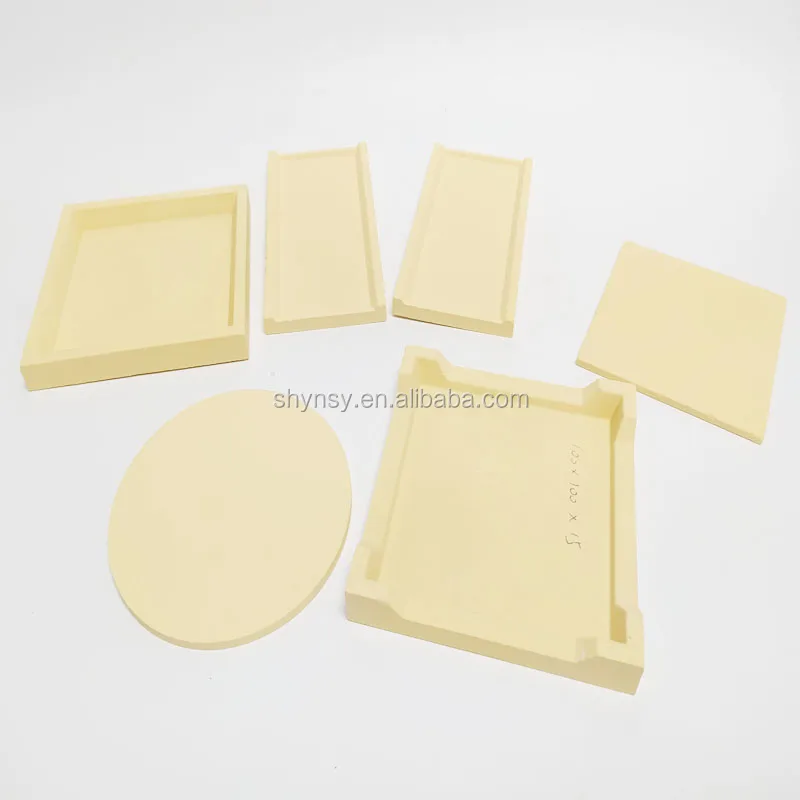

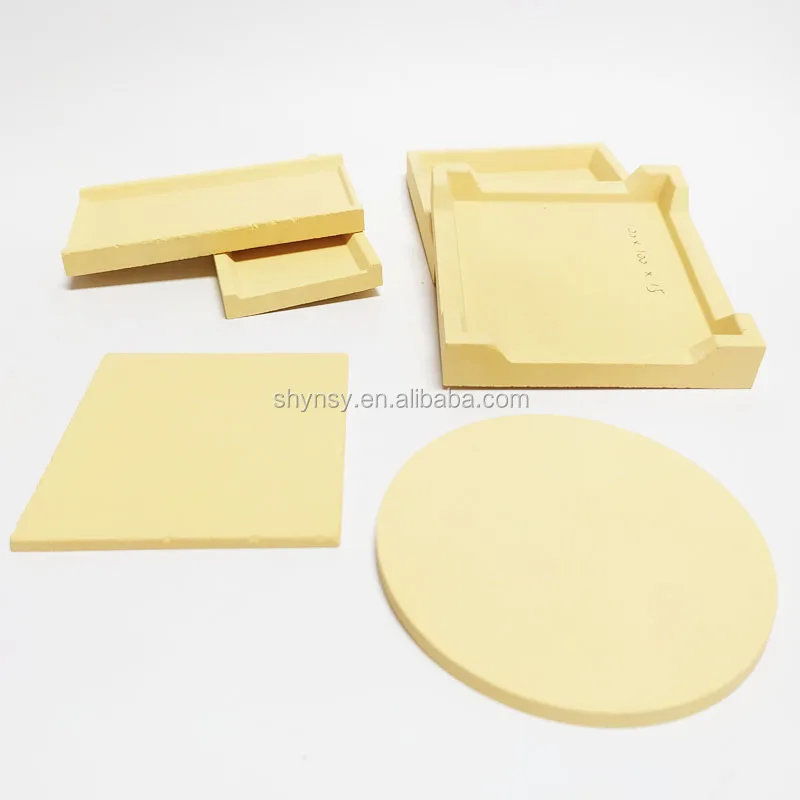

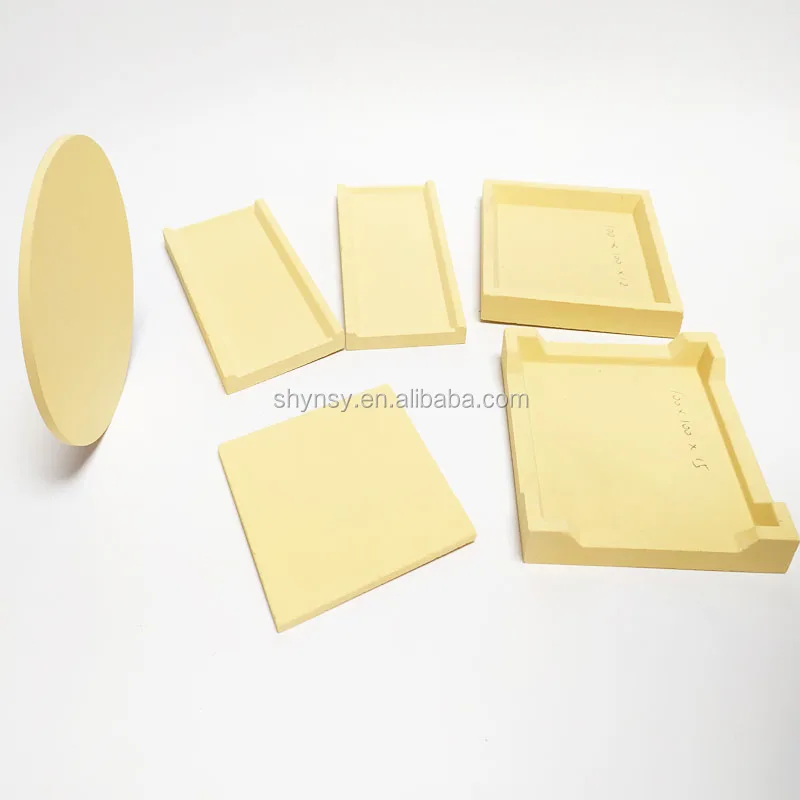

Specification:
Plain flat plate
150x150x6mm
100x100x3.5mm
100x75x3.5mm
Dia 95x4mm
Saggar shape
100x100x13mm
100x100x15mm
115x60x9mm
115x60x7mm
Application:
Widely used in ceramic capacitors, sensitive components, magnetic materials, chip inductors and other electronic components industries.
These are excellent kiln furniture for firing PZT piezoelectric parts and other electro-ceramics, such as barium titanate (BaTiO3 ) capacitors. DZSP is dimensionally stable to 1650 °C. They are composed of zirconia, partially stabilized with calcia, which is chemically inert and has good thermal shock resistance. It has exceptional resistance to oxidizing and reducing atmospheres at high temperatures. DZSP resists most corrosive environments, and contains no organic binders, produces no smoke and will not outgas.
Material data:
Compositon | ZrO2 + CaO | ≥98.5% |
Fe2O3 | ≤0.1％ | |
SiO2 | ≤0.4％ | |
TiO2 | ≤0.1％ | |
Al2O3 | ≤0.4％ | |
Properties | Apparent porosity | 20-29% |
Thermal expansion(1000C) | 0.7-0.8% | |
Bending Strength | ≥20MPa | |
Bulk density | 4.2-4.6g/Cm3 | |
Refractoriness under load | ≥16500C |
Way of shipping
By courier express or by air
For small package,gross weight <68 kgs or 100 kgs.>68 kgs,by air is better.
By sea
For big package,gross weight>100 kgs or large volume.
By railway
According to requirement from customers.
