Mullite Cordierite Ceramic Sight Tube for Heat Exchanger Parts
Product Description

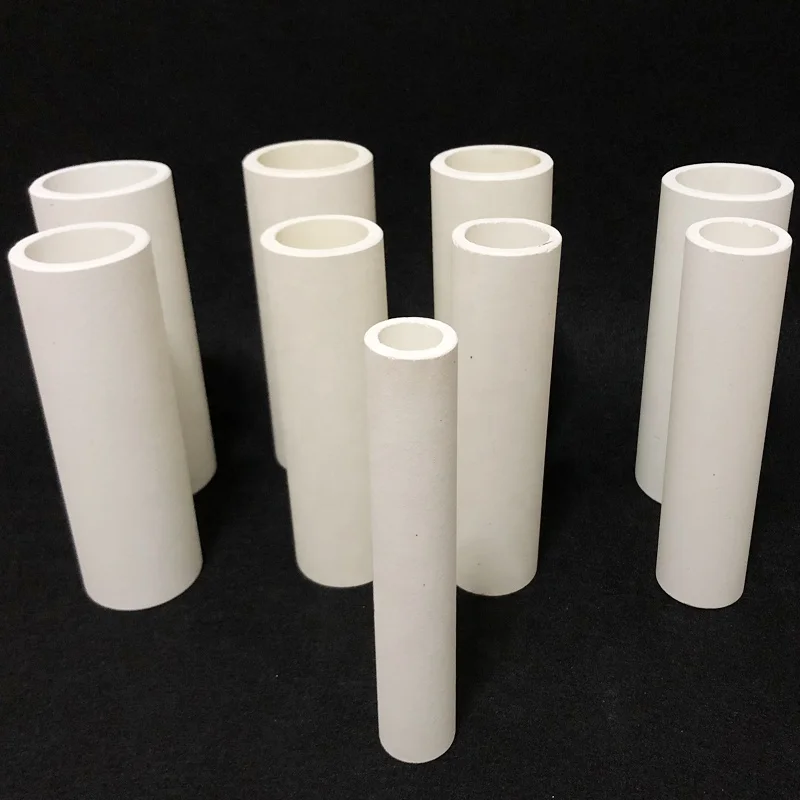

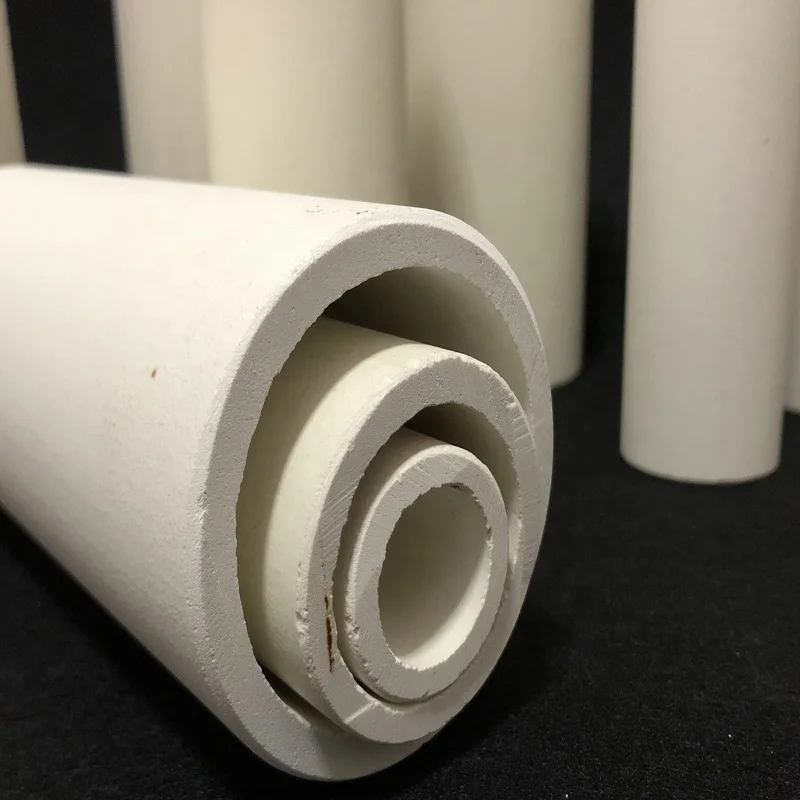

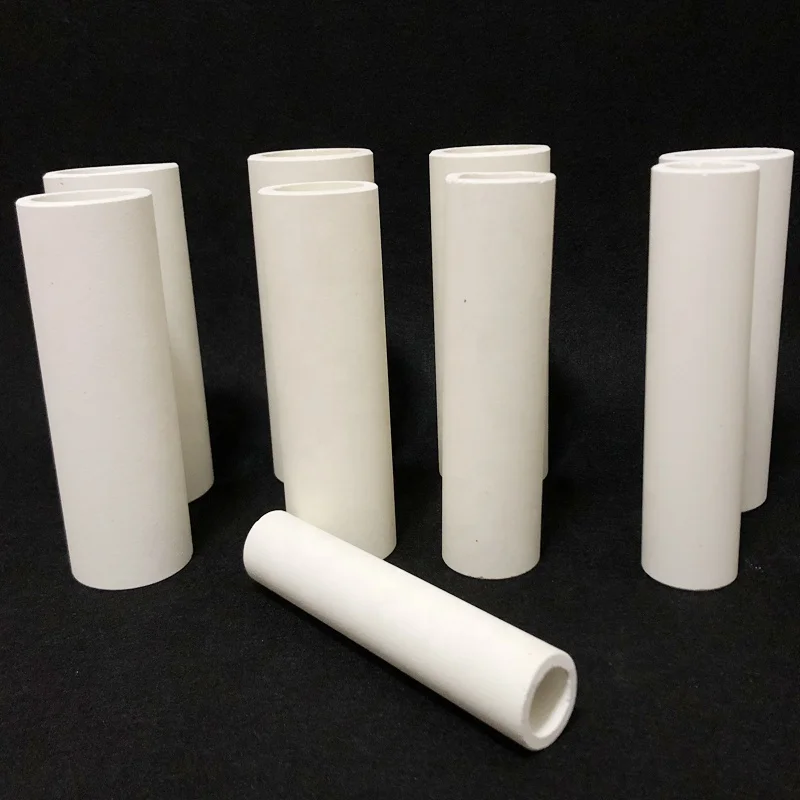

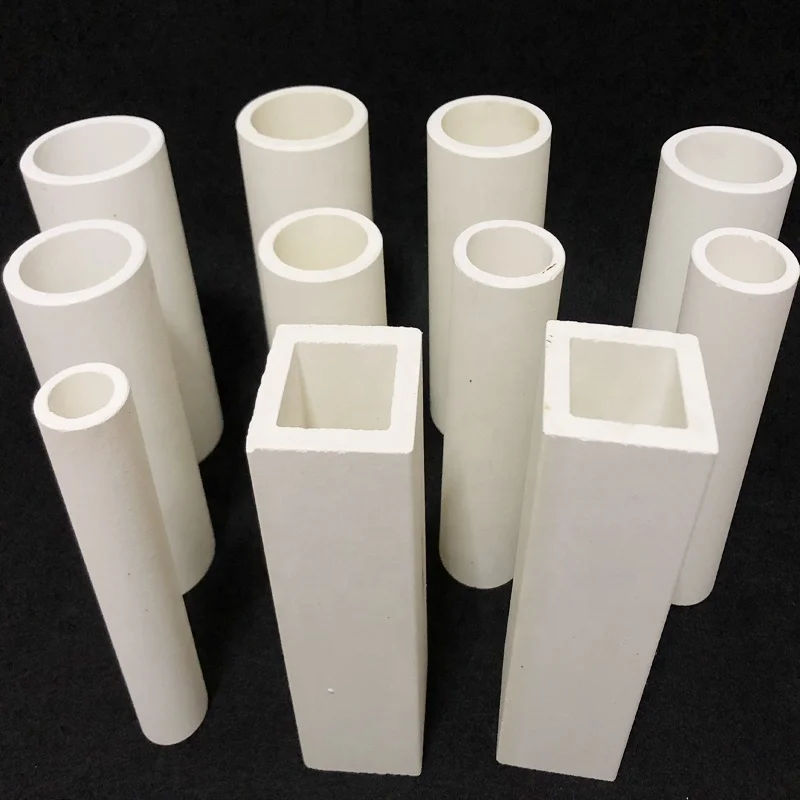

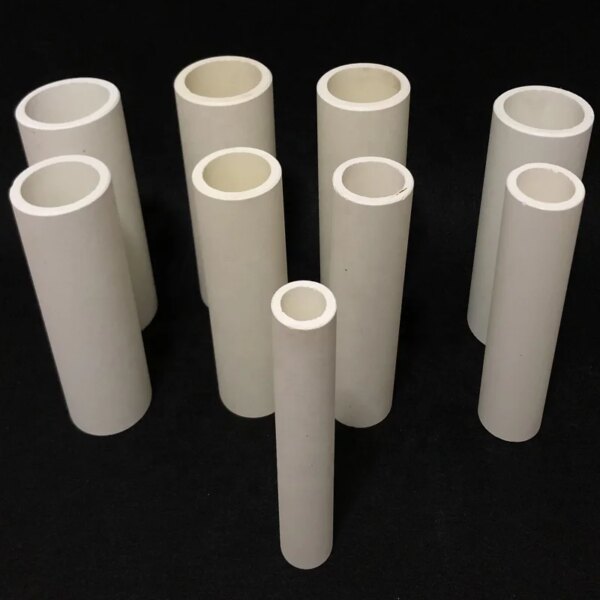

75% -85% Alumina ceramic furnace tube,Mullite ceramic pipe, Sillimanite refractory ceramic tube
Our tubes are manufactured from 75% -85% al2o3 with high temperature resistance about 1300-1400C.
※Production process:
Selection of raw material-crushing and batching-adding binder-forming-drying-firing
※Application:
Furnace tube,resistor tube,roller
Building ceramics, daily-use ceramics, rare earths, electronic ceramics and glass ceramic roller kiln.
※Material data:
Our tubes are manufactured from 75% -85% al2o3 with high temperature resistance about 1300-1400C.
※Production process:
Selection of raw material-crushing and batching-adding binder-forming-drying-firing
※Application:
Furnace tube,resistor tube,roller
Building ceramics, daily-use ceramics, rare earths, electronic ceramics and glass ceramic roller kiln.
※Material data:
Item name | BL-S | BL-V | BL-C | BL-D |
Density g/cm3 | 2.75-2.8 | 2.73-2.75 | 2.7-2.74 | 2.6-2.7 |
Rupture strength Mpa | 65-75 | 55-65 | 50-60 | 48-58 |
Water absorption | 5-6.5% | 6-7.5% | 6.5-8.5% | 7-9% |
Max using temperature (roller kiln) | 1400C | 1350C | 1300C | 1300C |
Refractoriness | 1800C | 1750C | 1700C | 1700C |
Al2o3 content | 76-80% | 75-77% | 75-80% | 60-70% |
Zirconium silicate | 4-7% | 4-6% | 0 | 0 |
Specification:
ODxID in mm
13×6 | 15×8 | 16×10 | 18×12 | 22×14 | 25×15 | 30×16 | |||||
27×17 | 28×18 | 30×20 | 35×25 | 40×25 | 40×30 | 42×31 | |||||
45×34 | 50×39 | 55×43 | 60×48 | 65×52 | 70×56 | 75×60 | |||||
80×65 | 85×70 | 90×75 | 95×80 | 100×84 | 105×85 | 110×90 | |||||
120×110 | We can cut length according to your requirement.We can also make to order. | ||||||||||
Company Profile
Products Description
Certifications
Way of shipping
Our Advantages
FAQ
Q1: How can know your quality?
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we
receive payment.
Q5:Payment terms:
We can negotiate.
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we
receive payment.
Q5:Payment terms:
We can negotiate.
