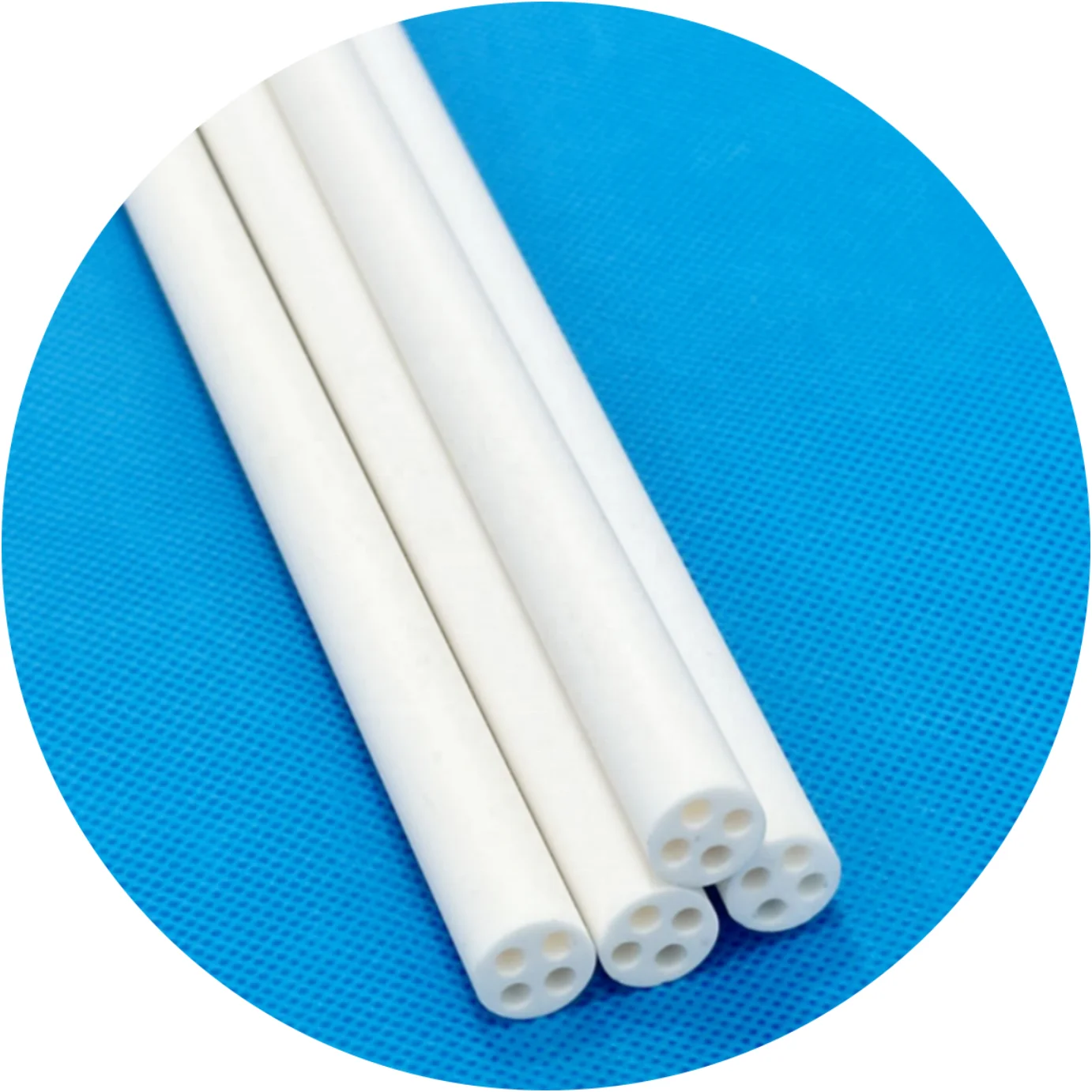

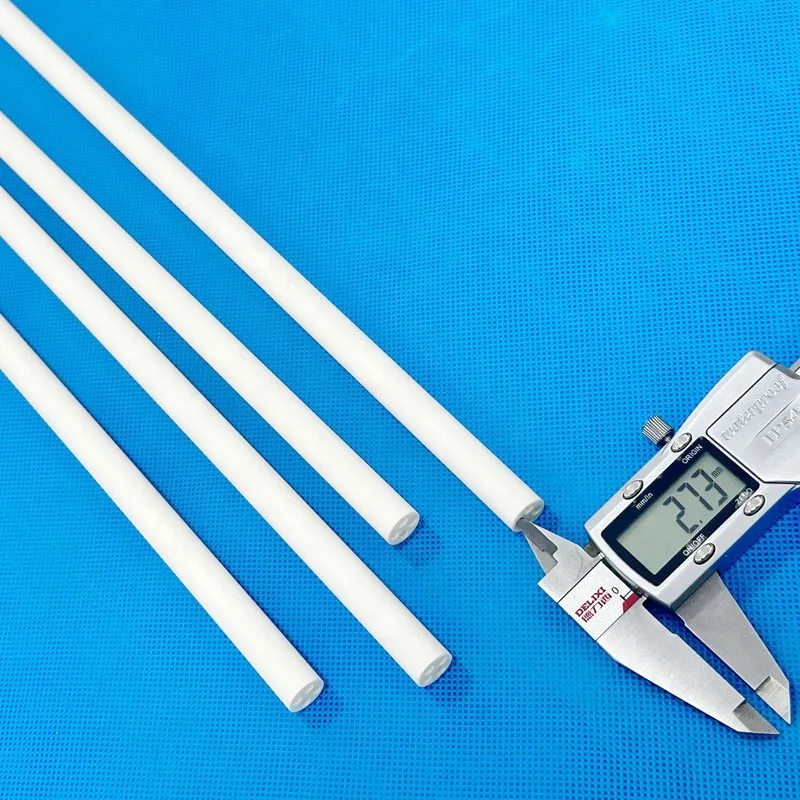

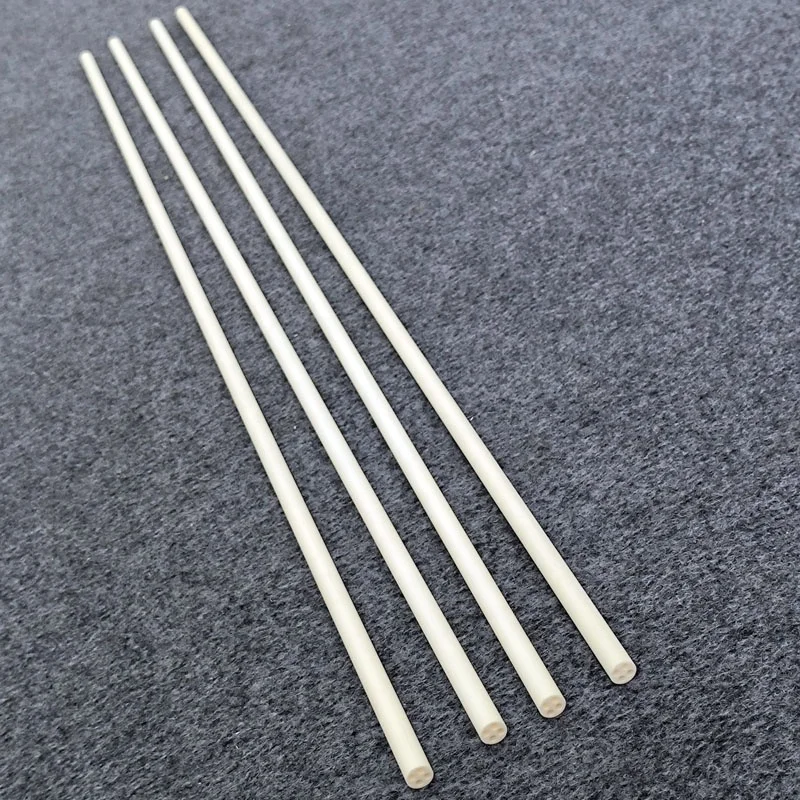

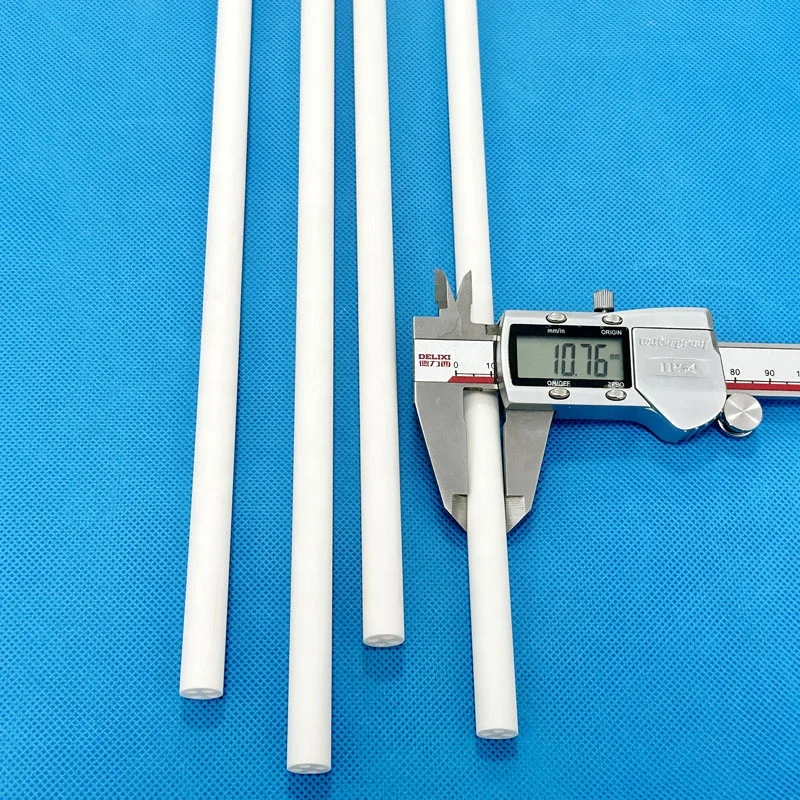

OD 11mm*L1000mm White Alumina 95% Tube With 4 holes 2.8mm Temperature Resistant 1200C
Product Description
We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including
# alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60 Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2),
# zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)
# silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).

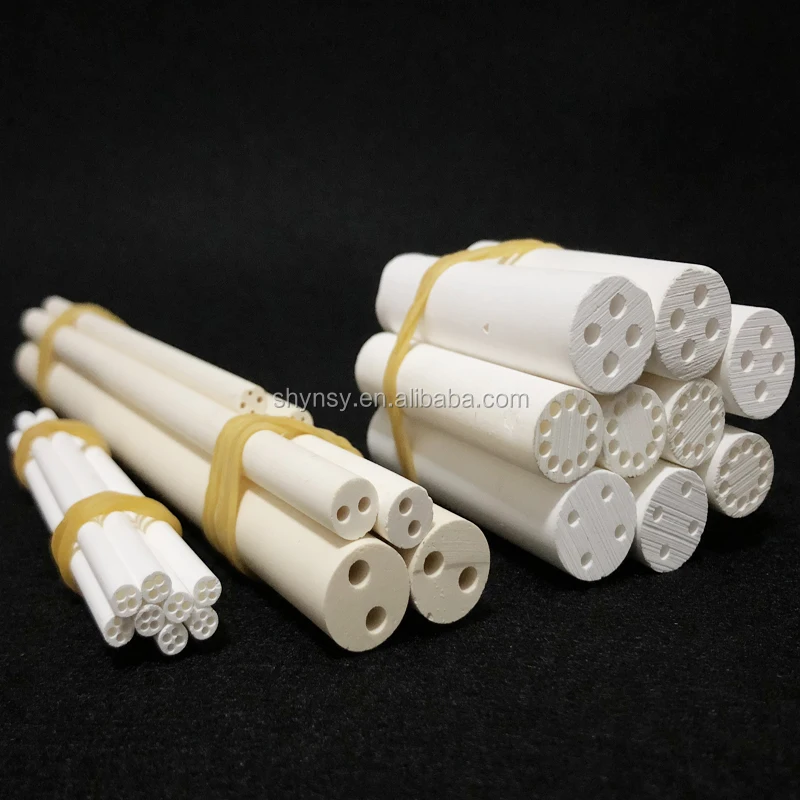

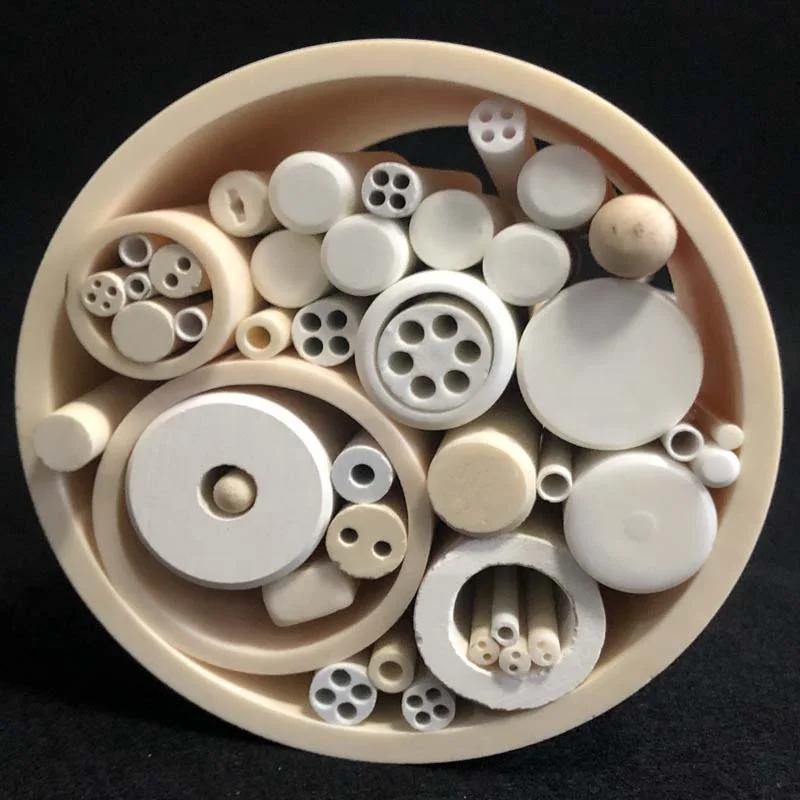

These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval shapes, custom shapes.
Main application:
Protection sheaths in high temperature measurement.
Thermocouple components
Igniter tubes
Thermostats
Turbine casting supports
Surgical devices
Knife sharpeners
Wafer processing components
Ceramic insulators
Vacuum devices
High-power resistor
|

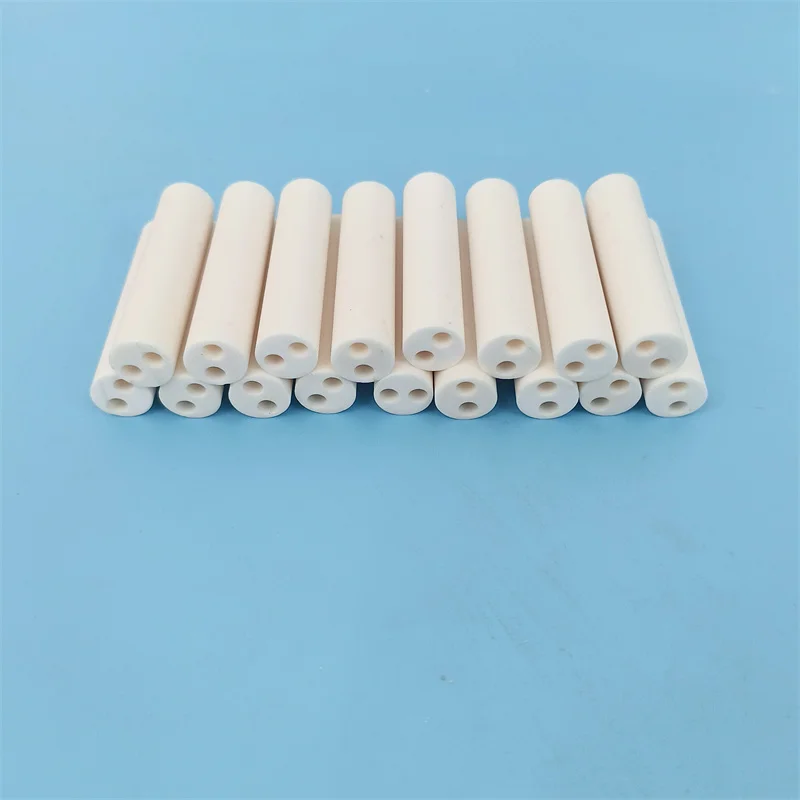

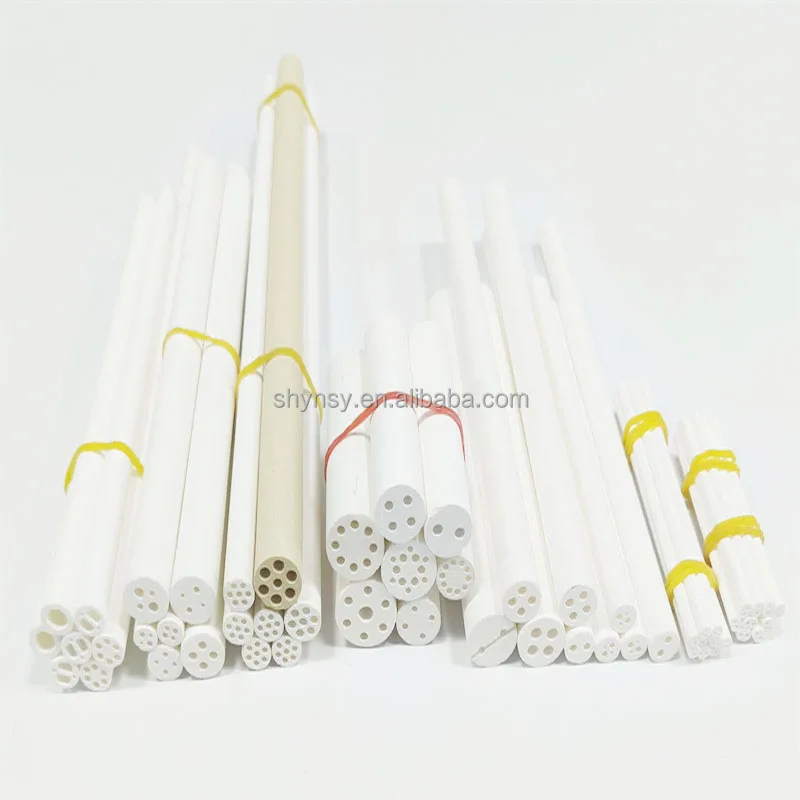

2 Bore / 4 bore alumina ceramic insulation tube in 95%,99.7% alumina
|
||
|
Nos of Hole
|
Od x Hole diameter in mm
|
Length
|
|
Round 2 hole
|
1×0.3 / 1.2 x0.3 / 1.4×0.4
|
0-1500mm
|
|
Round 2 hole
|
1.5×0.4 / 2×0.3 / 2×0.5 / 2×0.6 / 2.5×0.7 / 3×0.7
|
0-2500mm
|
|
Round 2 hole
|
3.5×0.8 / 3.5×1 / 4×1.2 / 4×1.5 / 4.5×1.2
|
0-2500mm
|
|
Round 2 hole
|
5×1.2 / 5×1.5 / 5.5×1.5 / 5.5×1.8 / 6×1.8
|
0-2500mm
|
|
Round 2 hole
|
6.5×1.8 / 6.5×2 / 8×2 / 8×2.4 / 10×2.7 / 16×4.9
|
0-2500mm
|
|
Round 4 hole
|
1.5×0.3 / 2×0.4 / 2.5×0.6 / 3×0.8 / 3.5×0.8 / 3.5×1
|
0-2500mm
|
|
Round 4 hole
|
4×1 / 4×1.3 / 4.5×1.2 / 5×1.2 / 5.5×1.3 / 6×1.3
|
0-2500mm
|
|
Round 4 hole
|
6.5×1.4 / 8×2 / 10×3 / 12×3.9 / 14×3.9 / 16×4
|
0-2500mm
|
FAQ
Q1: How can know your quality?
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after wereceive payment.
Q5:Payment terms:
We can negotiate.
