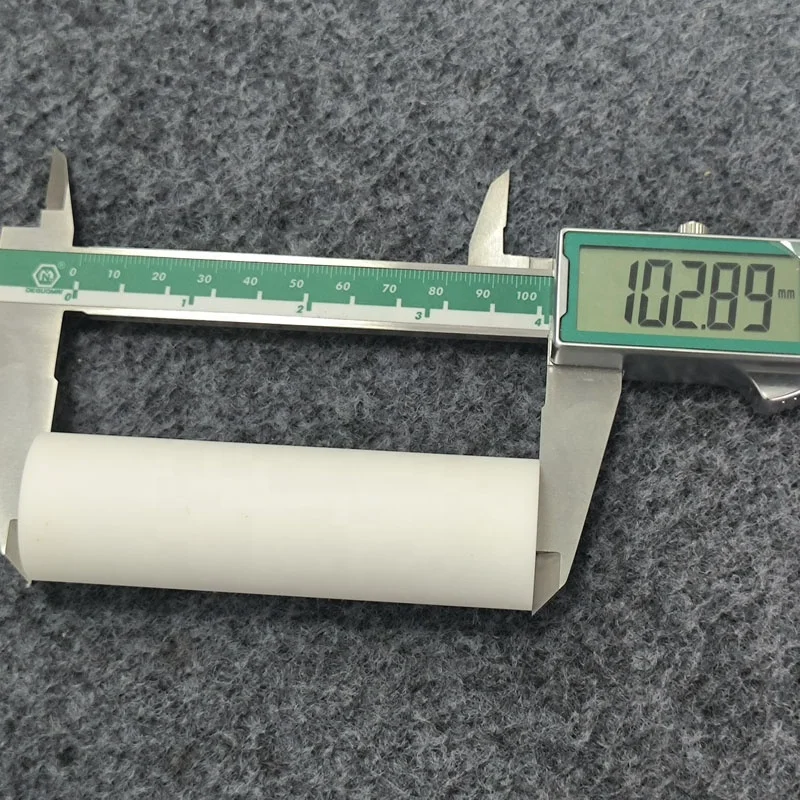

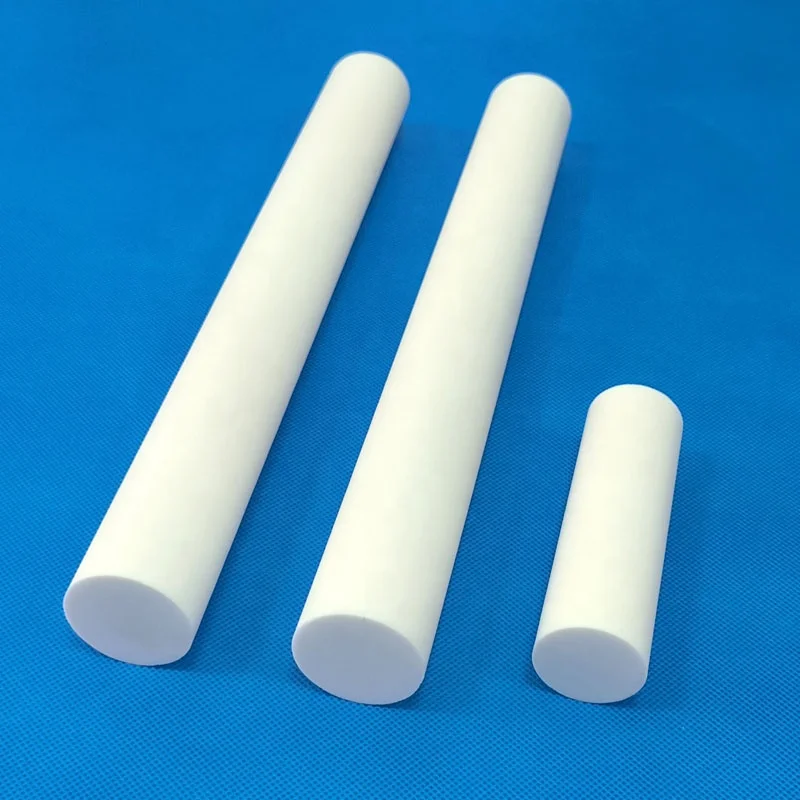

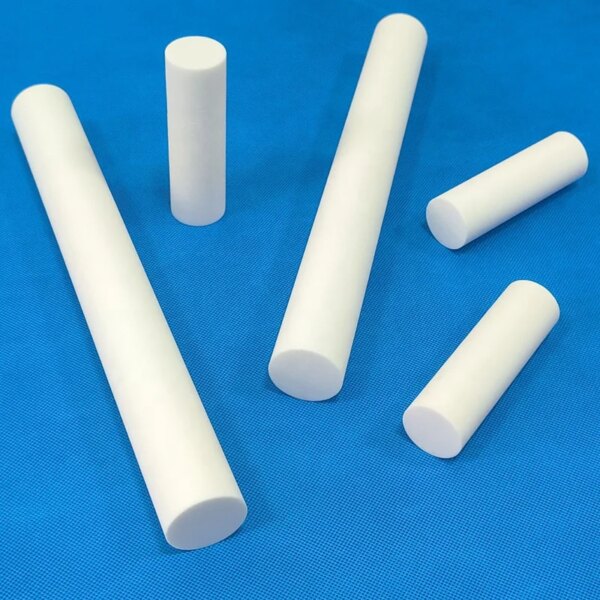

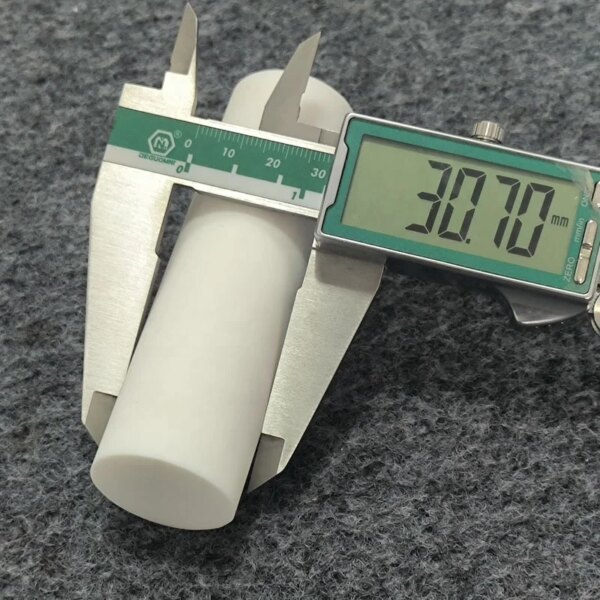

OD30mm Length100mm High Mechanical Strength Microcrystal Machinable Glass Ceramic Macor Rod
VR
Product Description
Machinable microcrystalline glass ceramics are fluorophlogopite microcrystalline glass with synthetic mica as the main crystalline phase, the main components are fluorophlogopite (Mg3K [AlF2O (SiO3) 3]) and glass composition with silica.
*Machinability applications: insulation pads, heat insulation pads, insulation supports, heat-resistant supports on various
mechanical equipment
*Application of insulation performance: key parts of lightning rod
*Application of thermal shock resistance: welding fixture, optical glass secondary molding mold, etc.
*Application of corrosion resistance: crude rod desalination electrode introduction rod, hanging
*Application of Electromagnetic Performance: Coil Skeleton of Missile Gyroscope
*Other performance applications: rotary vacuum pump rotor
Material data:
Data | Value | Remarks |
Density | 2.6 g/cm3 | Archimedes method |
Apparent porosity | 0.069% | |
Water absorption | 0 | |
Hardness | 4 ~ 5 | Mohs |
White | pure white | |
Thermal expansivity | 72×10-7/C | -50C to 200C average value |
Thermal conductivity | 1.71W / m.k | 25C |
Working temperature | 800 C | |
Bending strength | >108 MPa | |
Compressive strength | >508 MPa | |
Impact toughness | >2.56KJ/m2 | |
Modulus of elasticity | 65GPa | |
Dielectric loss | 1 ~ 4 × 10-3 | Room temperature |
Dielectric Constant | 6~7 | " |
Breakdown strength | >40KV/mm | Sample thickness 1mm |
Volume resistance | 1.08 x10^16Ω.cm | 25C |
1.5x 10^12Ω.cm | 200C | |
1.1×10^9Ω.cm | 500C | |
Outgassing rate at room temperature | 8.8×10-9 ml/s. cm2 | Vacuum aging for 8 hours |
Helium transmission rate | 1×10-10ml/s | After burning at 500C,cool to room temperature |
