Polished Zirconium Oxide Zro2 Zirconia Ceramic Sleeves for Medical Machine Parts
Product Description

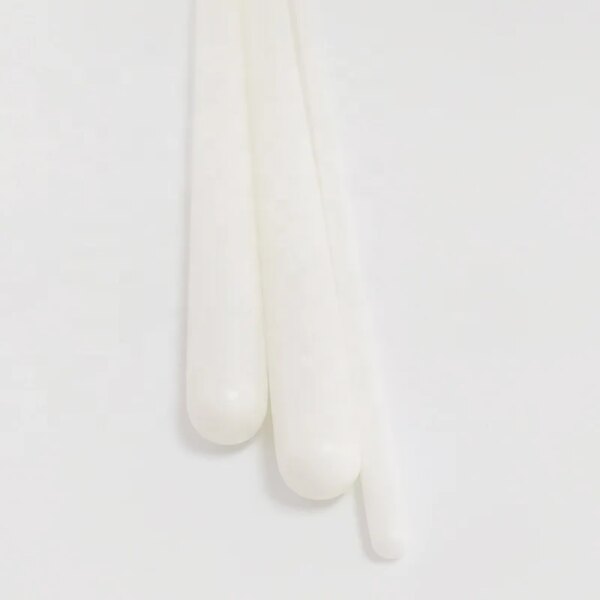

Zirconia protection tube
Material | Zirconia (ZrO2 + HfO2 86.0% Y2O3 13.5%) |
Shape | one round closed end |
Process | isostatic pressing |
Structure | Fully stable zirconia |
Temperature resistance | 1800 ～ 2300 ℃ |
Applicable places | polycrystalline furnace, ingot furnace |
Material | alumina,zirconia,mgo,steatite,mullite ect |
Size | customized or standard |
Application | sensors, electrical insulators or spacers in heat-treating furnaces, |
Color | white,yellow,pink |
Package | foam,carboard,plywood box |
Shipment | by courier,by flight,by sea |
Product Paramenters
Item no | Size in OD x ID x Length in mm | Remarks |
ZT-001 | 6x3x250 | One end closed |
ZT-002 | 6x4x120 | One end closed |
ZT-003 | 8x5x250 | One end closed |
ZT-004 | 8x5x300 | One end closed |
ZT-005 | 8x5x350 | One end closed |
ZT-006 | 9x5x550 | One end closed |
ZT-007 | 9.5x6x400 | One end closed |
ZT-008 | 10x6x200 | With thread |
ZT-009 | 10x6x300 | One end closed |
ZT-010 | 10x6x500 | One end closed |
ZT-011 | 10x6x600 | One end closed |
ZT-012 | 11.1x8x365 | One end closed |
ZT-013 | 12x8x300 | One end closed |
ZT-014 | 12.7×9.53×230 | Both ends open |
ZT-015 | 12.7×9.53×327 | One end closed |
ZT-016 | 12.7×9.5×365 | One end closed |
ZT-017 | 12.7×9.5×370 | One end closed |
ZT-018 | 12.7×9.53×375 | One end closed |
ZT-019 | 12.7×9.53×380 | One end closed |
ZT-020 | 12.7×9.53×385 | One end closed |
ZT-021 | 12.7×9.53×390 | One end closed |
ZT-022 | 12.7×9.53×395 | One end closed |
ZT-023 | 12.7×9.53×397 | One end closed |
ZT-024 | 12.7×9.5×400 | One end closed |
ZT-025 | 12.7×9.53×415 | One end closed |
ZT-026 | 12.7×9.53×430 | One end closed |
ZT-027 | 12.7×9.53×435 | One end closed |
ZT-028 | 13×8.5×700 | One end closed |
Product packaging
Way of shipping
By courier express or by air
For small package,gross weight <68 kgs or 100 kgs.>68 kgs,by air is better.
By sea
For big package,gross weight>100 kgs or large volume.
By railway
According to requirement from customers.
Company Profile
Shanghai Yunnuo Industrial Co., Ltd. is located in Shanghai,China. Our team at yunnuo has the experience to assist you in
producing the required items made of hard metal and technical ceramic that will fulfill your most stringent requirements. Our main products as below:
Industrial ceramic products: (al2o3)alumina ceramics,(Zro2) zirconia ceramics,(Mgo) magnesium oxide ceramics,(SiC)silicon carbide ceramics,steatite ceramic, mullite ceramic, cordierite, boron nitride, machinable ceramics, mica and other custom-made ceramics,etc. These are widely used in factories, research institutes, and other enterprises and institutions.
Our company's business philosophy: integrity, efficiency, innovation, transcendence, and win-win. Our company is to focus on the needs of customers, all for the sake of customers, in the principle of good faith, we provide professional, efficient,high-quality services, constantly innovate in technology and products, surpass ourselves, strive for excellence, and achieve a win-win situation.
producing the required items made of hard metal and technical ceramic that will fulfill your most stringent requirements. Our main products as below:
Industrial ceramic products: (al2o3)alumina ceramics,(Zro2) zirconia ceramics,(Mgo) magnesium oxide ceramics,(SiC)silicon carbide ceramics,steatite ceramic, mullite ceramic, cordierite, boron nitride, machinable ceramics, mica and other custom-made ceramics,etc. These are widely used in factories, research institutes, and other enterprises and institutions.
Our company's business philosophy: integrity, efficiency, innovation, transcendence, and win-win. Our company is to focus on the needs of customers, all for the sake of customers, in the principle of good faith, we provide professional, efficient,high-quality services, constantly innovate in technology and products, surpass ourselves, strive for excellence, and achieve a win-win situation.
