Square alumina ceramic crucible for lab 99.7% alumina content
Product Description
High pure alumina crucible
They are used in laboratory and various industrial analysis.
Features of alumina crucibles:
*High pure more than 99% al2o3
*Good chemical corrosion resistance
*High temperature resistance.
*Good thermal shock resistance
*Not easy to crack
*High density
Arc shape high form alumina crucible
Item no | Capacity CC | Top OD | Bottom OD | Height | Wall thickness | Net weight |
B-1 | 5 | 25 | 15 | 28 | 1.3 | 0.01 |
B-2 | 10 | 29 | 18 | 34 | 1.5 | 0.02 |
B-3 | 15 | 32 | 21 | 37 | 1.5 | 0.025 |
B-4 | 20 | 36 | 23 | 41 | 1.7 | 0.03 |
B-5 | 30 | 38 | 25 | 45 | 1.7 | 0.04 |
B-6 | 50 | 48 | 30 | 52 | 2 | 0.05 |
B-7 | 100 | 58 | 35 | 68 | 2 | 0.1 |
B-8 | 150 | 67 | 42 | 78 | 2.5 | 0.015 |
B-9 | 200 | 73 | 48 | 86 | 2.5 | 0.18 |
B-10 | 300 | 83 | 52 | 106 | 2.5 | 0.25 |
B-11 | 350 | 87 | 54 | 102 | ||
B-12 | 400 | 91 | 56 | 108 | 2.5 | 0.3 |
B-13 | 500 | 100 | 60 | 118 | 3 | 0.4 |
B-14 | 500 | 100 | 50 | 85 | 5 | 0.45 |
B-15 | 750 | 112 | 70 | 132 | 3 | 0.5 |
B-16 | 1000 | 125 | 80 | 146 | 3.5 | 0.7 |
B-17 | 1500 | 140 | 90 | 170 | 4 | 1.1 |
B-18 | 2000 | 150 | 93 | 200 | 4 | 1.4 |
B-19 | 140 | 60 | 220 |
Cylindrical alumina crucible
Item | Outer diameter mm | Height mm | Wall thickness | Capacity CC | Net Weight kgs |
A-1 | 25 | 25 | |||
A-2 | 30 | 30 | 2 | 15 | 0.025 |
A-3 | 35 | 35 | 2 | 25 | 0.035 |
A-4 | 40 | 40 | 2.5 | 35 | 0.055 |
A-5 | 50 | 50 | 2.5 | 75 | 0.09 |
A-6 | 50 | 100 | |||
A-7 | 50 | 120 | |||
A-8 | 55 | 120 | |||
A-9 | 60 | 60 | 3 | 130 | 0.15 |
A-10 | 60 | 120 | |||
A-11 | 60 | 170 | |||
A-12 | 65 | 150 | |||
A-13 | 70 | 60 | 3 | ||
A-14 | 70 | 90 | |||
A-15 | 70 | 120 | |||
A-16 | 78 | 158 | 3.5 | ||
A-17 | 80 | 80 | 3 | 330 | 0.27 |
A-18 | 85 | 85 | 3 | 400 | 0.31 |
A-19 | 90 | 90 | 3 | 480 | 0.35 |
A-20 | 90 | 100 | 3.5 | ||
A-21 | 90 | 105 | 3.5 | ||
A-22 | 90 | 120 | 3.5 |
Item | Outer diameter mm | Height mm | Wall thickness | Capacity CC | Net Weight kgs |
A-23 | 100 | 100 | 3.5 | 650 | 0.5 |
A-24 | 100 | 180 | |||
A-25 | 100 | 210 | |||
A-26 | 100 | 240 | |||
A-27 | 105 | 165 | |||
A-28 | 110 | 110 | 3.5 | 880 | 0.6 |
A-29 | 115 | 130 | |||
A-30 | 118 | 124 | |||
A-31 | 120 | 120 | 3.5 | 1140 | 0.81 |
A-32 | 120 | 170 | 4.5 | ||
A-33 | 125 | 150 | |||
A-34 | 130 | 130 | 4 | 1450 | 0.96 |
A-35 | 135 | 210 | |||
A-36 | 140 | 140 | 4 | 1850 | 1.12 |
A-37 | 140 | 300 | 6 | ||
A-38 | 150 | 150 | 4 | 2250 | 1.44 |
A-39 | 160 | 160 | 4.5 | 2450 | 1.64 |
A-40 | 160 | 180 | 4.5 | 3100 | |
A-41 | 170 | 170 | 4.5 | 3350 | 1.86 |
A-42 | 180 | 180 | 4.5 | 4000 | 2.09 |
A-43 | 250 | 100 | 6 | ||
A-44 | 280 | 360 | |||
A-45 | 300 | 150 |
Shape | Length*width*height mm | Item No. | Shape | Length*width*height mm |
Step | 30*20*15 | 33 | Rectangle,with hole | 73*30*22 |
60*17*10 | 34 | 100*24*17 | ||
60*30*15 | 35 | 100*27*27 | ||
120*30*15 | 36 | 103*28*30 | ||
100*77*27 | 37 | 100*43*25 | ||
125*105*20 | 38 | Round bottom | 100*56*35 | |
Boat,with hole | 40*10*7 | 39 | 50*40*20 | |
77*13*8 | 40 | 60*30*20 | ||
88*15*9 | 41 | 60*54*24 | ||
95*16*11 | 42 | 100*20*20 | ||
97*17*12 | 43 | 100*30*20 | ||

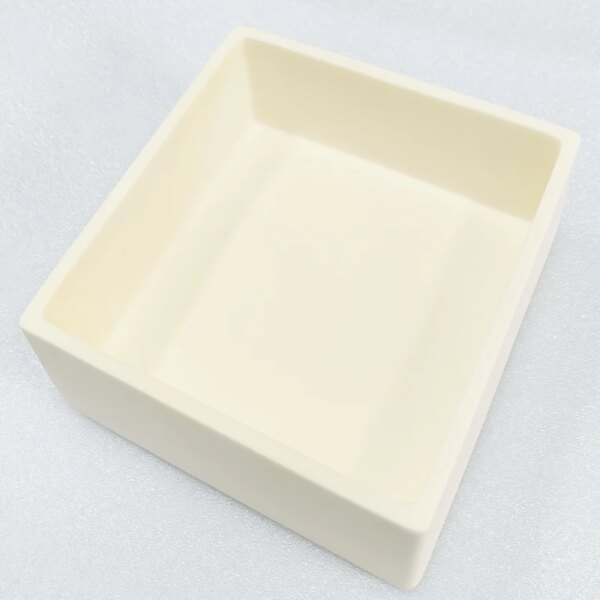

Square | 70*70*30 | 44 | 100*40*20 | |
80*80*40 | 45 | 100*50*30 | ||
100*100*30 | 46 | 150*40*20 | ||
115*115*60 | 47 | 250*40*18 | ||
48 | 290*40*20 | |||
49 |
Material data
We can make vent open on the crucibles
Way of shipment:
By courier express or by air
For small package,gross weight <68 kgs or 100 kgs.>68 kgs,by air is better.
By sea
For big package,gross weight>100 kgs or large volume.
By railway
According to requirement from customers.
