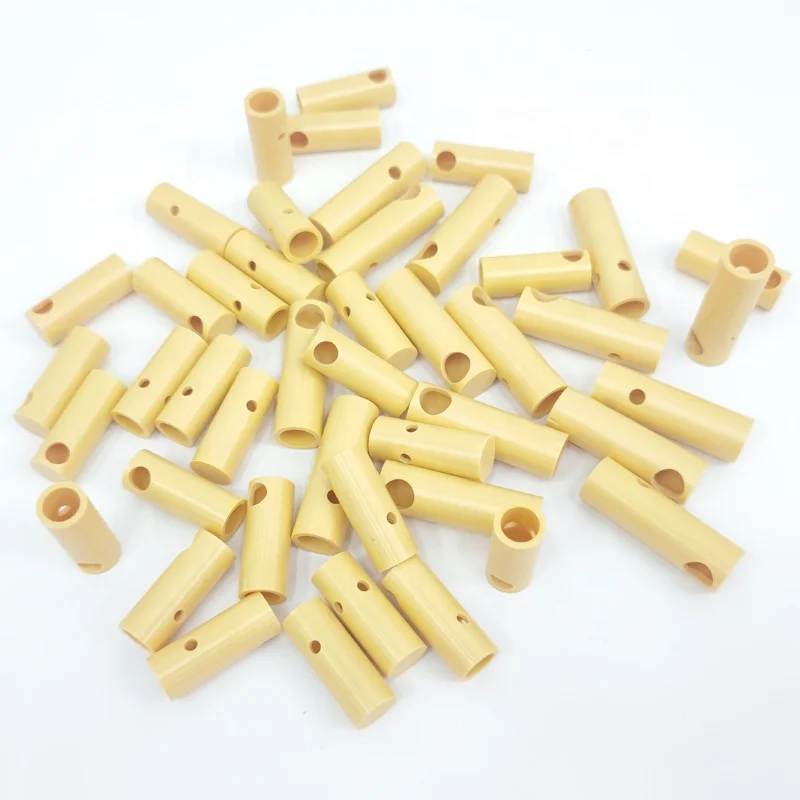

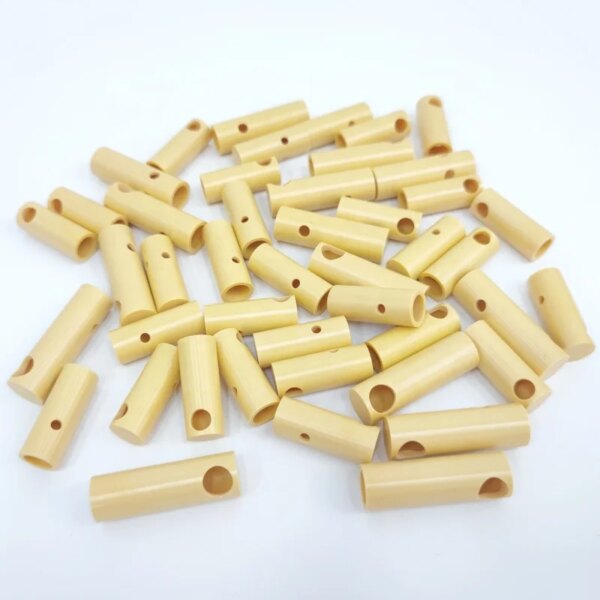

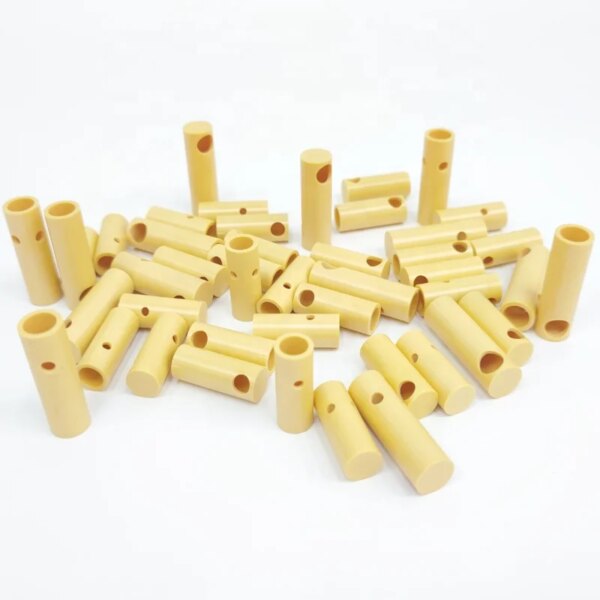

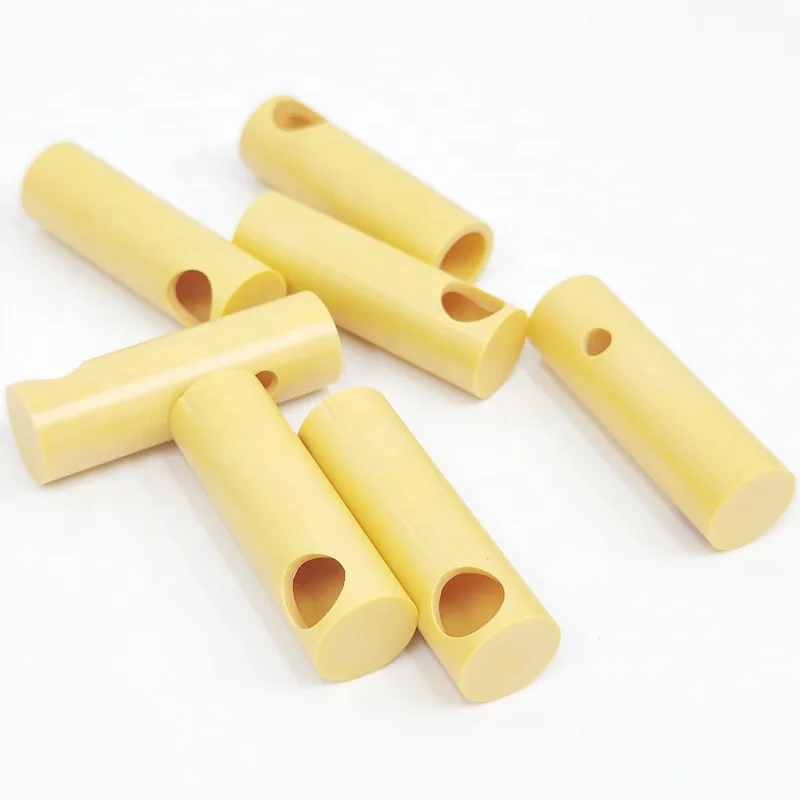

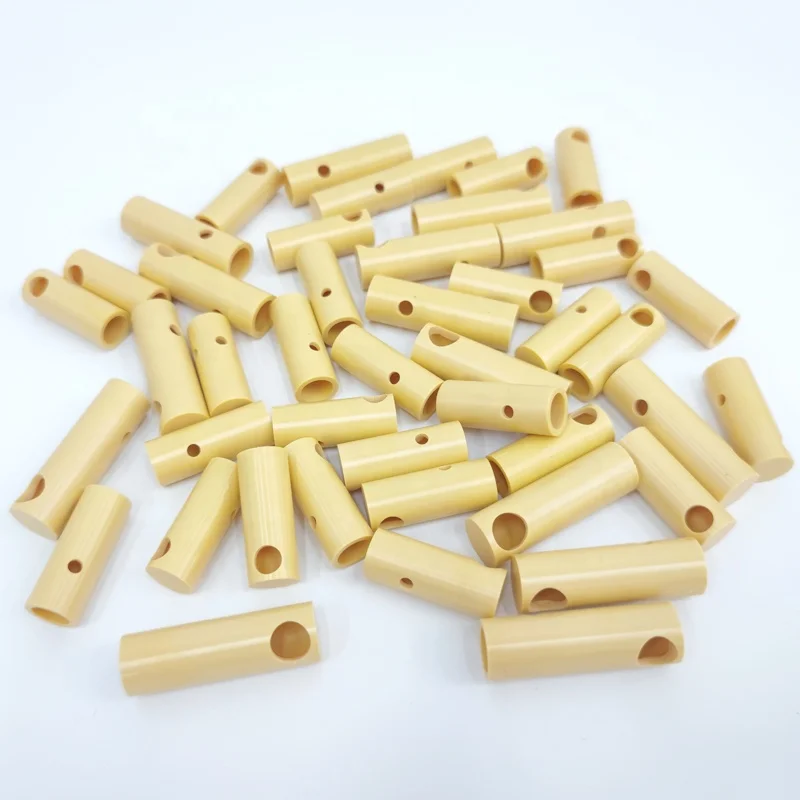

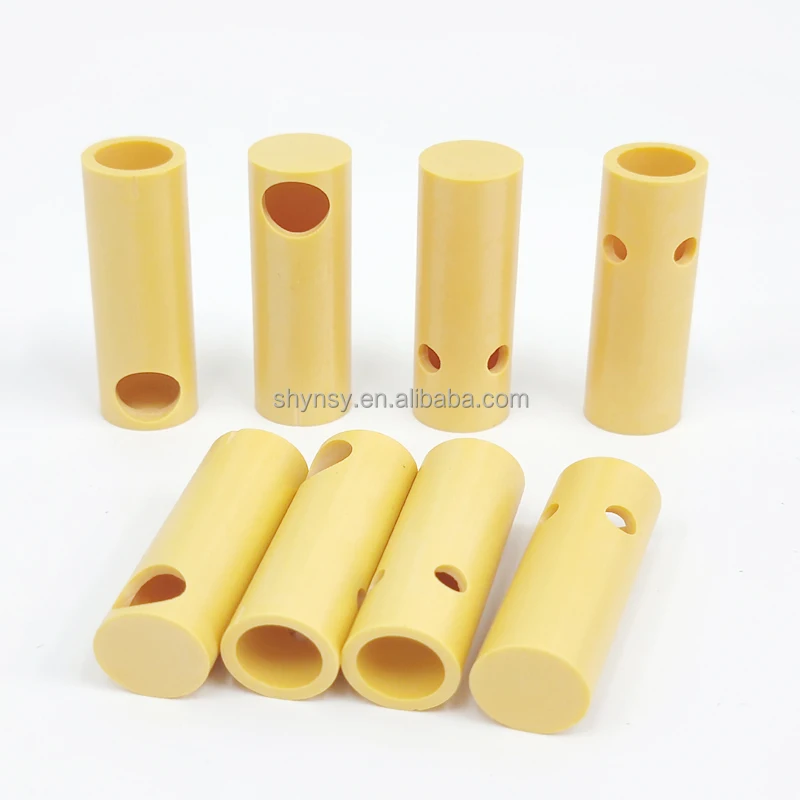

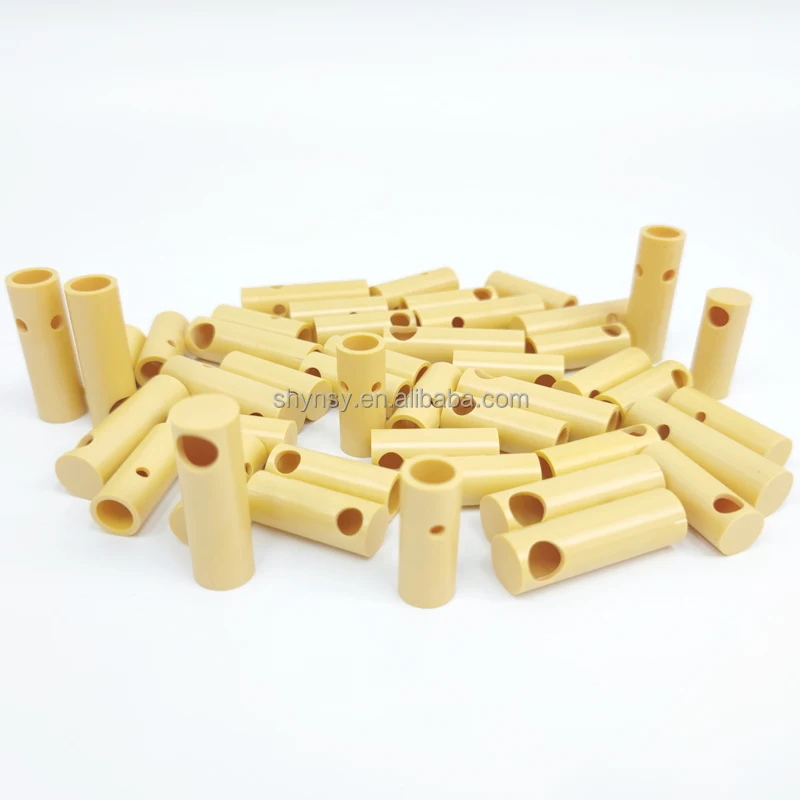

Yellow Mg PSZ Mgo Magnesia Partially Stabilized Zro2 Zirconia Magnesium Zirconium Ceramic Crucible for Lab Pot
Product Description
Zirconia ceramics
Advantages:
1. High strength and high hardness;
2. Good abrasion resistance;
3. High toughness;
4. Low friction coefficient;
5. Good corrosion resistance;
6. Low thermal conductivity;
7. The modulus of elasticity and coefficient of thermal expansion are close to metals.
Details:
1.Zirconia ceramics have the advantages of high hardness, good wear resistance, high toughness, low
Advantages:
1. High strength and high hardness;
2. Good abrasion resistance;
3. High toughness;
4. Low friction coefficient;
5. Good corrosion resistance;
6. Low thermal conductivity;
7. The modulus of elasticity and coefficient of thermal expansion are close to metals.
Details:
1.Zirconia ceramics have the advantages of high hardness, good wear resistance, high toughness, low
coefficient of friction, and good corrosion resistance. They are widely used in mechanical seals, ball milling media, cutting tools, ceramic bearings,automotive engine parts, etc.
2.The wear resistance of zirconia ceramics is 15 times that of alumina ceramics. The friction coefficient of
2.The wear resistance of zirconia ceramics is 15 times that of alumina ceramics. The friction coefficient of
zirconia ceramics is only 1/2 of that of alumina ceramics, while the friction coefficient of alumina ceramics is
very low.
3.The density of zirconia ceramics is higher than that of alumina ceramics. The density of alumina ceramics is 3.5. The density of zirconia ceramics is 6. The texture is more delicate. After grinding, the surface finish is higher than
3.The density of zirconia ceramics is higher than that of alumina ceramics. The density of alumina ceramics is 3.5. The density of zirconia ceramics is 6. The texture is more delicate. After grinding, the surface finish is higher than
9. It is mirror-like,extremely smooth, and has a smaller coefficient of friction.
4.In addition, the toughness of zirconia ceramics is excellent, which overcomes the inherent brittleness of the
4.In addition, the toughness of zirconia ceramics is excellent, which overcomes the inherent brittleness of the
ceramics, has higher wear resistance, and greatly extends the service life of the product.
Applications of zirconia ceramic
* Structural ceramics:
Mainly include: Y-TZP grinding ball, nozzle, ball valve ball seat, fiber optic sleeve, drawing die and cutting tool,
wear-resistant cutter, case and strap, bracelet and pendant, ball bearing, etc.
* Functional ceramics:
Used as induction heating tubes, refractory materials, and heating elements. Used in fields such as oxygen sensors, solid oxide
fuel cells, and high-temperature heating elements.
In addition, zirconia is widely used in thermal barrier coatings, catalyst carriers, medical, health care, refractory materials,
textiles and other fields.
Applications of zirconia ceramic
* Structural ceramics:
Mainly include: Y-TZP grinding ball, nozzle, ball valve ball seat, fiber optic sleeve, drawing die and cutting tool,
wear-resistant cutter, case and strap, bracelet and pendant, ball bearing, etc.
* Functional ceramics:
Used as induction heating tubes, refractory materials, and heating elements. Used in fields such as oxygen sensors, solid oxide
fuel cells, and high-temperature heating elements.
In addition, zirconia is widely used in thermal barrier coatings, catalyst carriers, medical, health care, refractory materials,
textiles and other fields.
Material data:
9 mol% magnesia partially stabilized zirconia (Mg-PSZ)
Item | Unit | Value |
Color | Yellow | |
Density | g/cm3 | 5.7 |
Bending strength | MPa | 500 |
Compressive strength | MPa | 2,500 |
Elastic Modulus | GPa | 250 |
Fracture toughness | MPam1/2 | 6~7 |
Weber coefficient | M | 12 |
Vickers hardness | HV0.5 | 1,100 |
Linear expansion coefficient | 10-6K-1 | 10 |
Thermal conductivity | W/mK | 3 |
Resistance to thermal shock (water cooling) | TC | 450 |
Maximum use temperature | C | 2,100 |
Volume resistance, 20 ℃ | Ωcm | >1014 |
Dielectric strength | V/m | 13×105 |
Applications:
Way of shipping
By courier express or by air
For small package,gross weight <68 kgs or 100 kgs.>68 kgs,by air is better.
By sea
For big package,gross weight>100 kgs or large volume.
By railway
According to requirement from customers.
